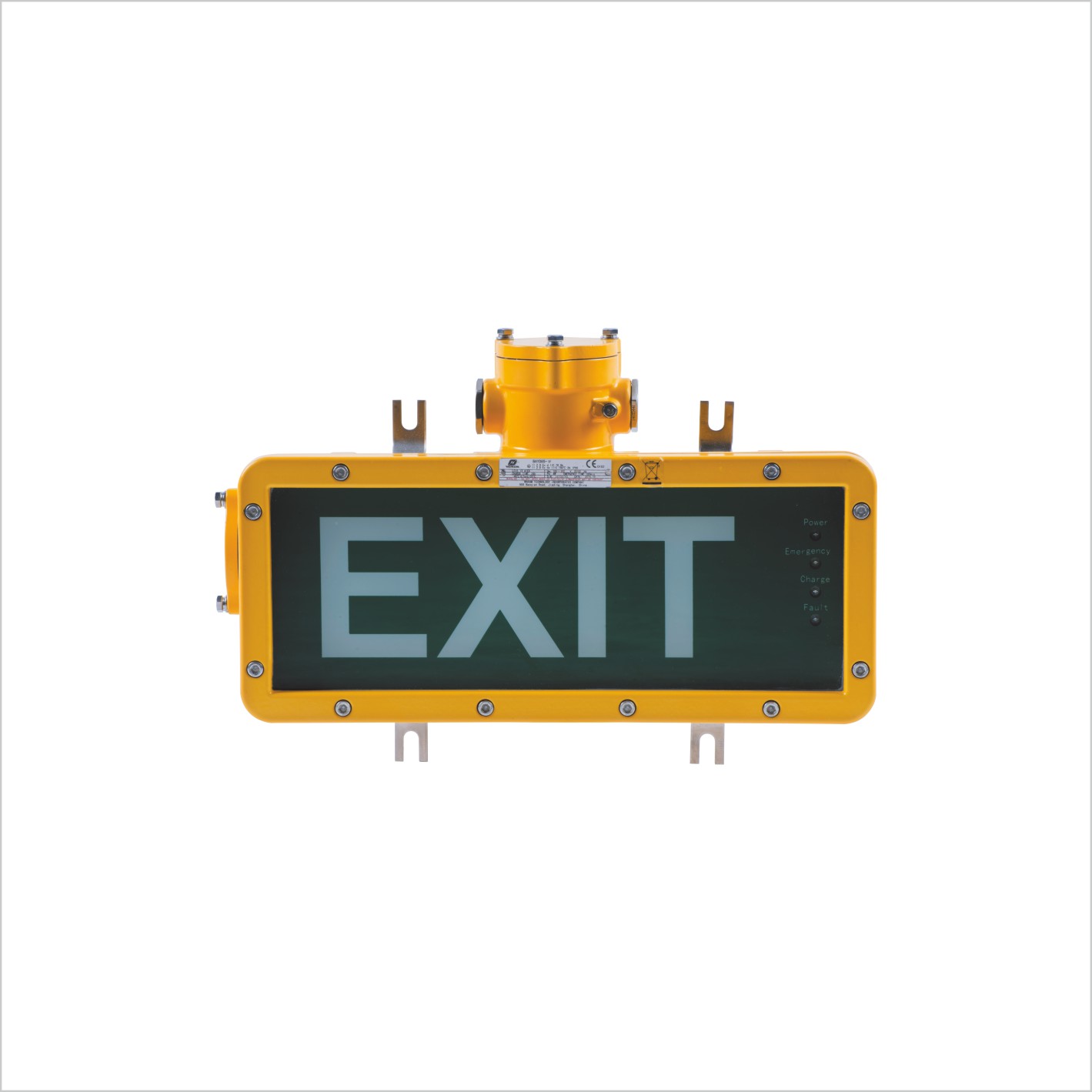

BAYD85 Series

Explosion-proof Emergency Exit Light Fittings

Overview

  • Explosion protection compliant with CENELEC, IEC, and NEC standards
  • Suitable for hazardous areas:
    • Zone 1 and Zone 2
    • Zone 21 and Zone 22
    • Class I, Zone 1 and Zone 2
    • Class I, Division 1, Groups C, D
  • Provides illumination in both normal and emergency conditions
    • Automatically switches to emergency mode when power is interrupted
    • Equipped with overcharge, overdischarge, and short-circuit protection
  • User-friendly design with test button and sleep button:
    • Test button allows emergency function testing
    • Sleep button temporarily switches off light output and restores operation when pressed again
  • High-efficiency LED light source with low power consumption
  • Long service life of up to 50,000 hours, ensuring energy savings and environmental protection
  • Durable enclosure made of copper-free aluminium alloy, powder-coated (RAL1021), corrosion-resistant
  • Toughened glass cover resistant to temperature variations

Specifications

Explosion Protection
  • IECEx (Global): IECEx CQM 16.0032X
    • Ex db IIB T6 Gb
    • Ex db IIC T6 Gb
    • Ex tb IIIC T80°C Db
  • ATEX (Europe): TÜV CY 22 ATEX 020689X
    • II 2 G Ex db IIB T6 Gb
    • II 2 G Ex db IIC T6 Gb
    • II 2 D Ex tb IIIC T80°C Db
Standards & Certifications
  • IECEx, ATEX, CU-TR, INMETRO
  • EN 60079-0 / -1 / -31
  • IEC 60079-0 / -1 / -31
Construction & Materials
  • Enclosure: Copper-free aluminium alloy, powder-coated (RAL1021)
  • Fasteners: Stainless steel
Electrical Data
  • Rated Voltage: 100–300V AC 50/60Hz, 100–250V DC, 12–48V AC/DC
  • Power Consumption: 4W / 8W
  • LED Type: LED lamp (working voltage DC 3.6V)
Emergency Function
  • Emergency Duration: 180 minutes
  • Battery Capacity: 800mAh
  • Charging Time: 16 hours
Protection & Environment
  • Earthing: M5 (internal & external earth bolts)
  • Ingress Protection: IP66
  • Ambient Temperature: -40°C to +60°C (depending on configuration)
Installation
  • Terminals: 3 × 1.5–2.5 mm² (L + N + PE)
  • Cable Entry: 2 × M25 × 1.5
  • Cable Gland (optional): DQM-II (Ex d) or DQM-III (Ex d)
Additional Information
  • Weight: 5.15 kg
  • Suitable for Zones 1 & 2
