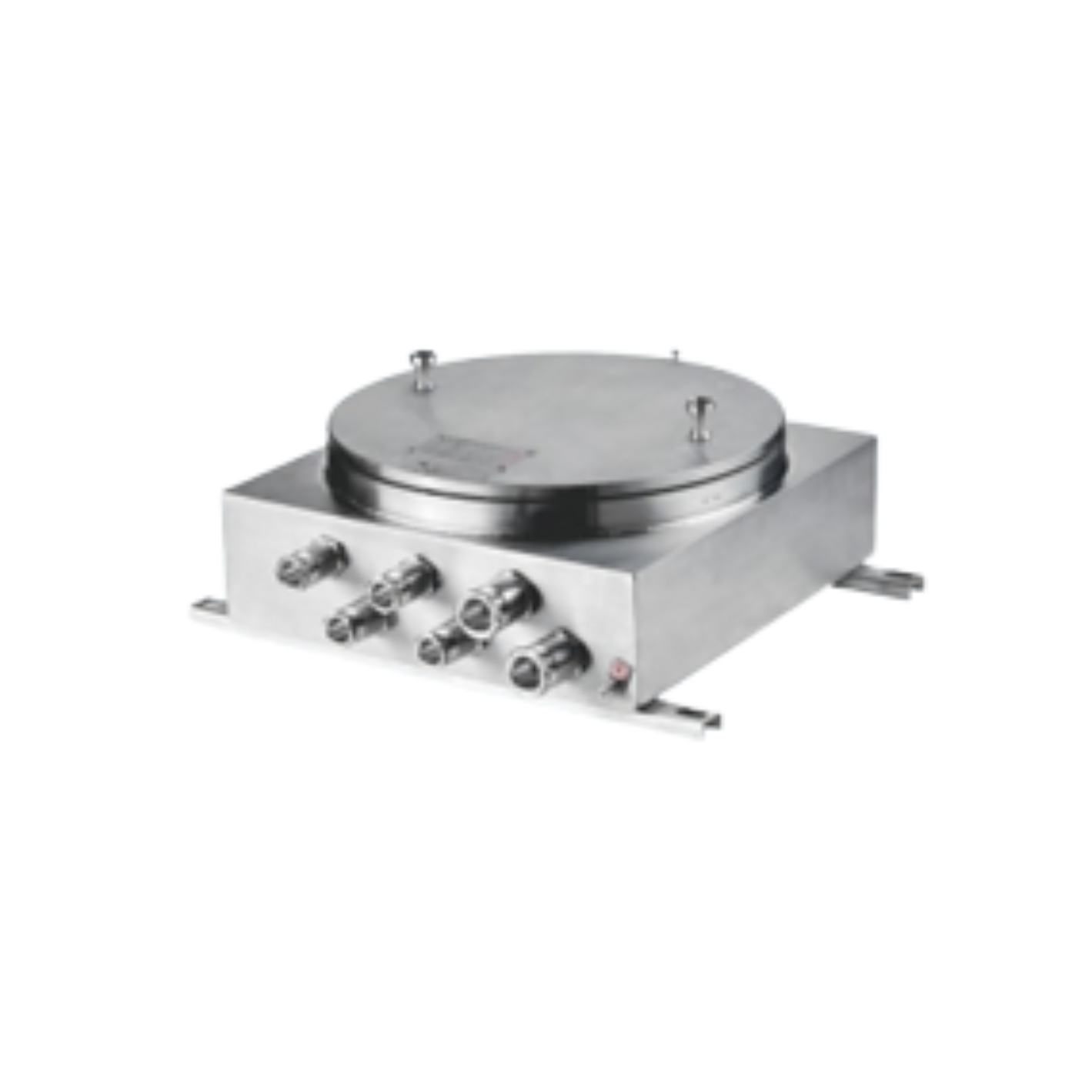

BJK-G Series

• Explosion protection to
– CENELEC
– IEC

• Can be used in
– Zone 1 and Zone 2
– Zone 21 and Zone 22

Explosion protection

Global (IECEx)
Gas and dust
IECEx (applied for)
Ex db IIB T6 Gb
Ex db IIC T6 Gb
Ex tb IIIC T80°C Db

Europe (ATEX)
Gas and dust
ATEX (applied for)
II 2 G Ex db IIB T6 Gb
II 2 G Ex db IIC T6 Gb
II 2 D Ex tb IIIC T80°C Db

Certificates

IECEx; ATEX

Conformity to standards

IEC 60079-0, IEC 60079-1, IEC 60079-31
EN 60079-0, EN 60079-1, EN 60079-31

Working voltage

AC 220V, POE (optional)

Material

Aluminium alloy, carbon steel Q235, stainless steel 304, stainless steel 316 (optional)

Protection rating

IP66

Corrosion protection rating

WF1/WF2

Temperature range

-40°C~+70°C

Mounting method

Wall-mounted

Cable entries

M20×1.5 entry size, suitable for cables with diameters of Φ6.5 mm to Φ14.5 mm

Zones

Zones 1&2; 21&22
