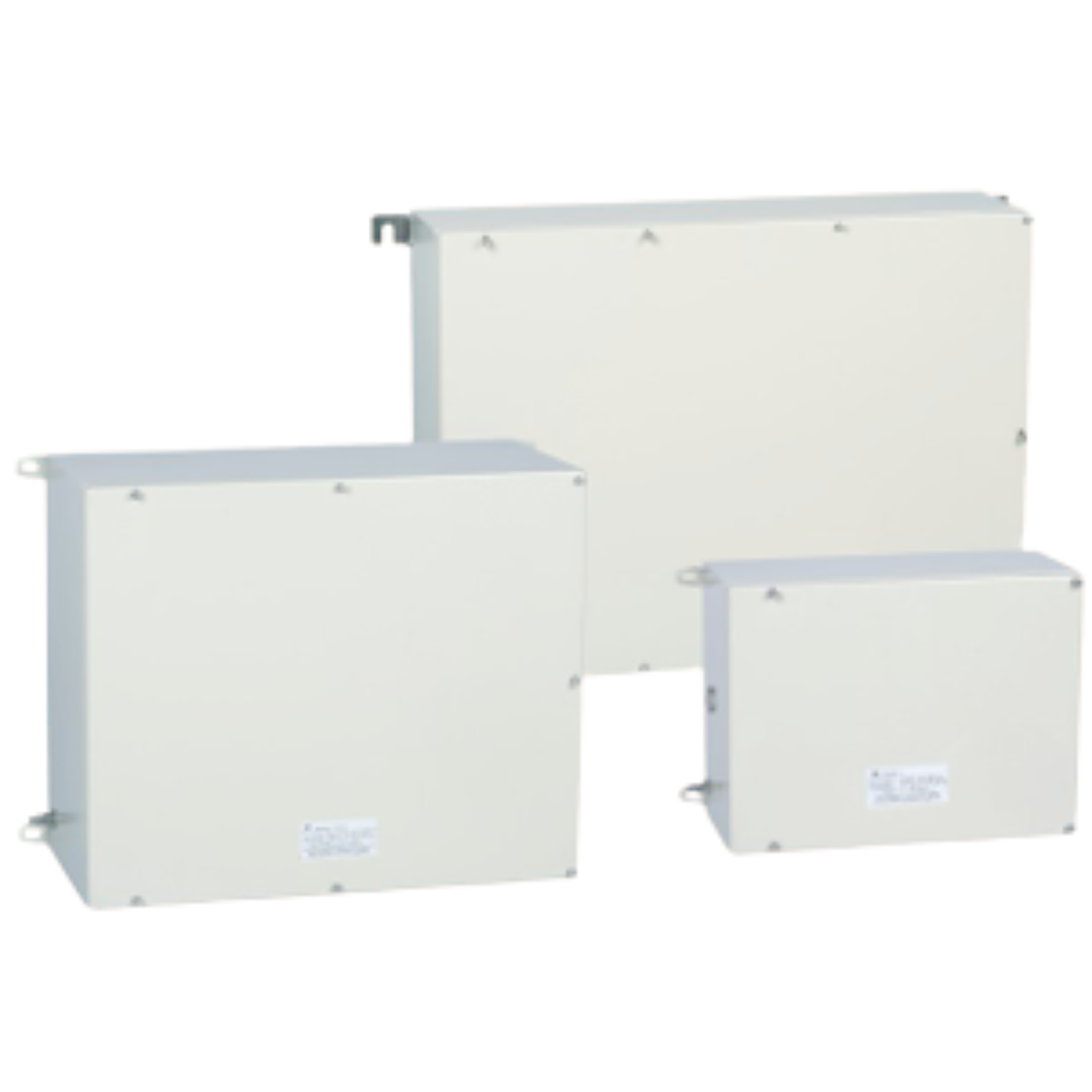

BXJ93 Series

● Explosion protection to

• CENELEC
• IEC
• NEC

● Can be used in
Zone 1 and Zone 2
Zone 21 and Zone 22
Class I, Zone 1 and Zone 2
Class I, Division 2, Groups A, B, C, D

● Enclosure: stainless steel

● Special requirements on request

● Features an integrated fiber optic fusion panel, enabling the fusion, fixation, and branching of multiple-core optical fibers, thereby facilitating efficient distribution of optical signals

● It also offers reserved space for coiling redundant optical fibers, preventing excessive bending and minimizing signal loss

Explosion protection

Global (IECEx)

IECEx CQM 25.0024X

Gas and dust

Ex op pr IIC T6 Gb (without heater)
Ex op pr tb IIIC T80°C Db (without heater)
Ex db eb op pr IIC T5 Gb (with heater)
Ex op pr tb IIIC T95°C Db (with heater)

Europe (ATEX)

TUV CY 25 ATEX 0207447 X

Gas and dust

II 2 G Ex op pr IIC T6 Gb (without heater)
II 2 D Ex op pr tb IIIC T80°C Db (without heater)
II 2 G Ex db eb op pr IIC T5 Gb (with heater)
II 2 D Ex op pr tb IIIC T95°C Db (with heater)

Certificates

IECEx; ATEX

Conformity to standards

EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-28, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-28, IEC 60079-31

Enclosure material

Stainless steel

Exposed fastener

Stainless steel

Rated voltage

BXJ93-□H: 230V AC 50/60Hz

Number of fibers

48, 96, 192, 144, 288

Internal & external earthing

M8/M12

Degree of protection

IP66

Ambient temperature

-60°C ~ +60°C (+50°C)
