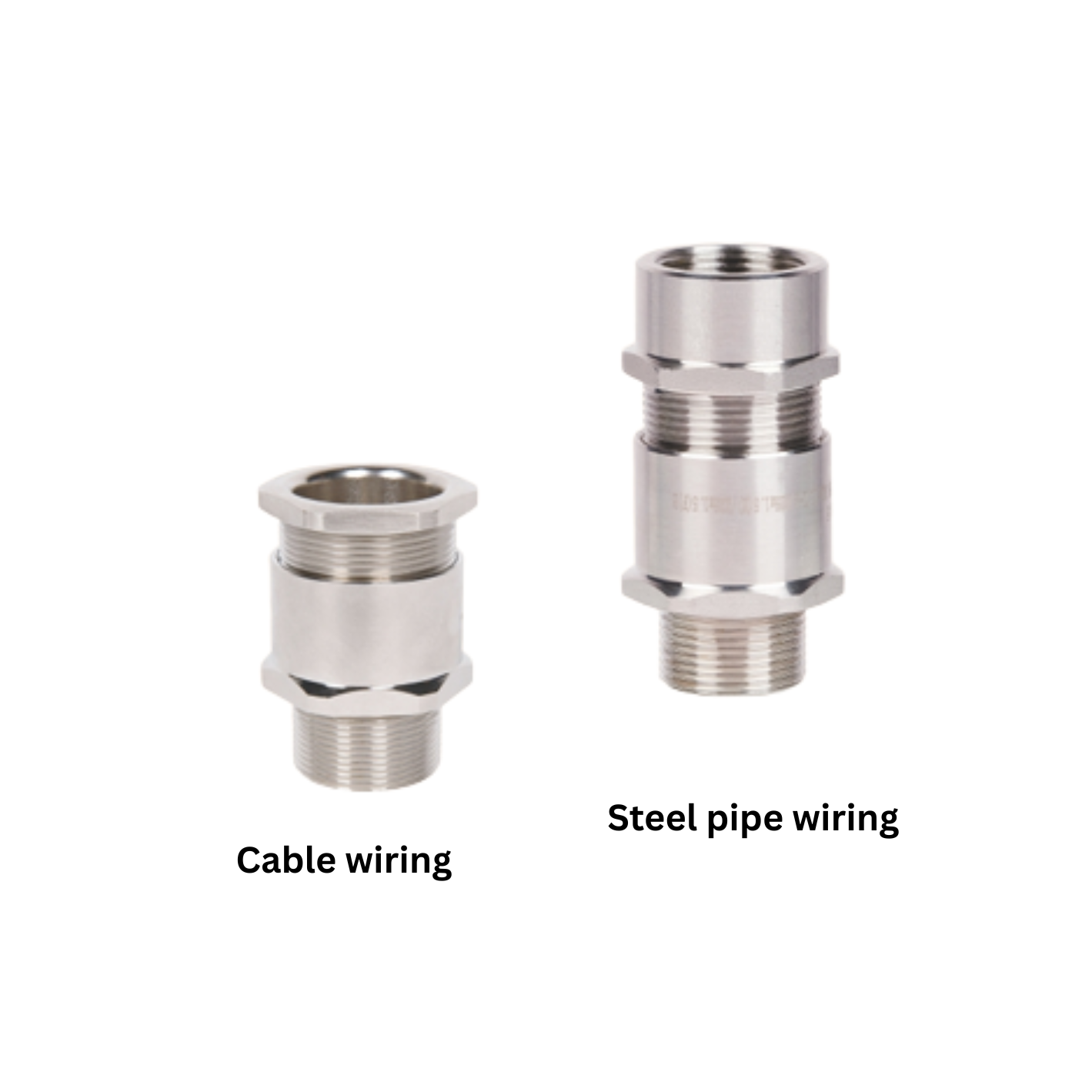

DQM-II Series Unarmored Single Seal

Explosion-proof Cable Glands, Unarmored single Seal

Overview

● Explosion protection to

  • CENELEC
  • IEC
  • NEC

● Can be used in
Zone 1 and Zone 2
Zone 21 and Zone 22
Class I, Zone 1 and Zone 2
Class I, Division 1, Groups A, B, C, D

● Ex d, Ex e structure; available in stainless steel or nickel plated brass

● Single seal, suitable for unarmored cable

Specifications

Explosion protection
Global (IECEx)

IECEx LCI 08.0011X

Gas and dust

Ex d IIC Gb
Ex e IIC Gb
Ex tb IIIC Db IP66

Europe (ATEX)

LCIE 06 ATEX 6100X

Gas and dust

II 2 G Ex d IIC Gb
II 2 G Ex e IIC Gb
II 2 D Ex tb IIIC Db IP66

Certificates

IECEx; ATEX; CU-TR

Conformity to standards

EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31

Gland material

Stainless steel or nickel plated brass

Degree of protection

IP66

Ambient temperature

-60°C ~ +100°C

Connection thread

Metric thread is standard type; G thread or NPT thread is optional
