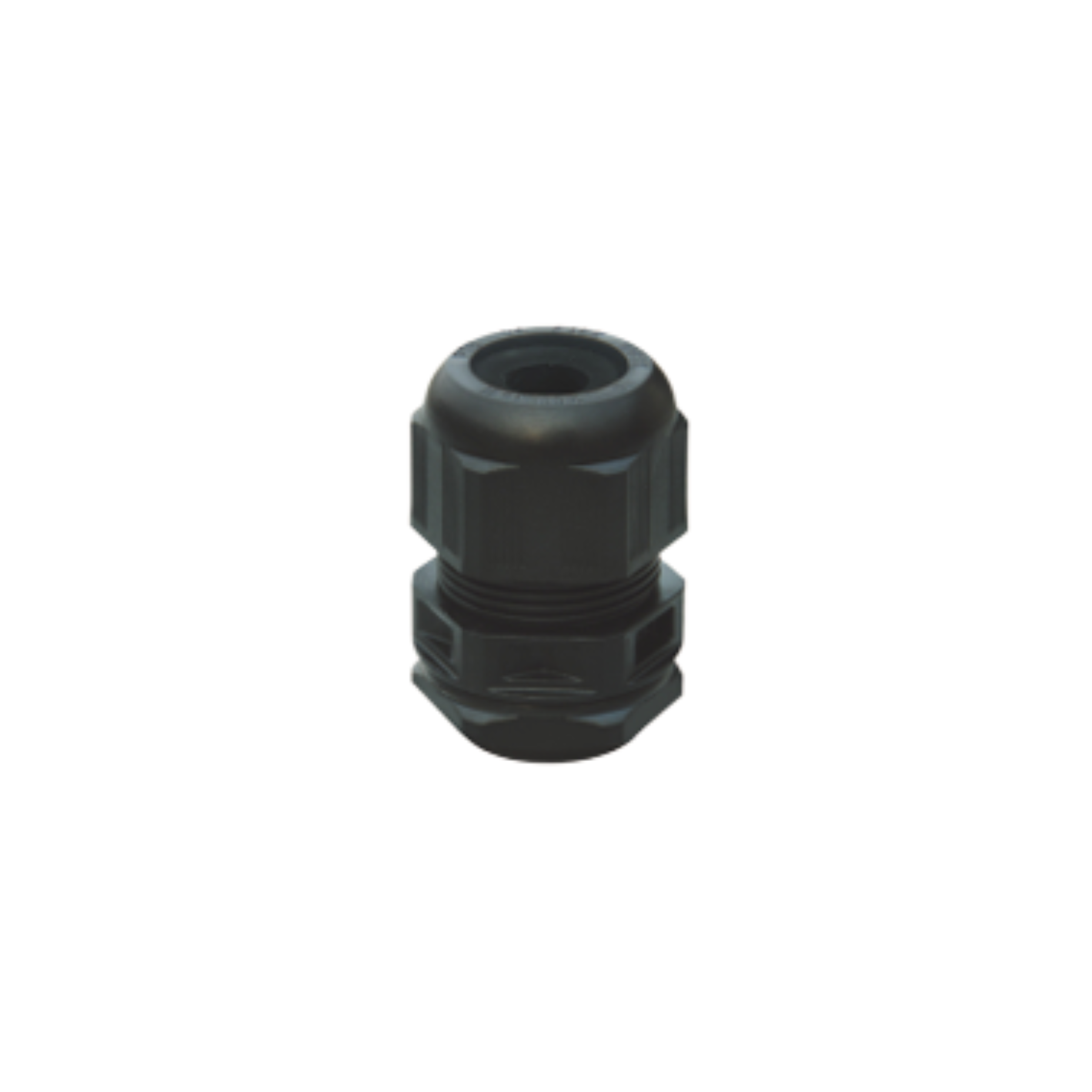

DQM-l Series (Ex e)

Explosion-proof Cable Glands, Plastic Unarmored

Overview

  • Explosion protection compliant with CENELEC, IEC, and NEC standards
  • Suitable for hazardous areas:
    • Zone 1 and Zone 2
    • Class I, Zone 1 and Zone 2
    • Class I, Division 2, Groups A, B, C, D
  • Designed with Ex e (increased safety) structure
  • Manufactured from high-quality plastic (black finish), offering durability and corrosion resistance
  • Features a single sealing system, suitable for unarmoured cables
  • Provides secure cable entry and reliable sealing performance in hazardous environments
  • Ideal for use in industrial installations requiring safe and efficient cable management

Specifications

Explosion Protection
  • IECEx (Global): IECEx CQM 25.0005X
    • Ex eb IIC Gb
    • Ex tb IIIC Db
  • ATEX (Europe): TÜV CY 26 ATEX 0207552X
    • II 2 G Ex eb IIC Gb
    • II 2 D Ex tb IIIC Db
Standards & Certifications
  • IECEx, ATEX
  • EN 60079-0 / -7 / -31
  • IEC 60079-0 / -7 / -31
Construction & Materials
  • Gland Material: Plastic (black)
Protection & Environment
  • Degree of Protection: IP66
  • Service Temperature: -40°C to +80°C
Installation & Dimensions
  • Designed for unarmoured cables with a single sealing system
  • Available gland sizes and cable ranges:
    • M16×1.5: Ø5–8 mm
    • M20×1.5: Ø6–10 mm
    • M25×1.5: Ø9–12 mm
    • M32×1.5: Ø12–18 mm
    • M40×1.5: Ø17–25 mm
    • M50×1.5: Ø23–32 mm
    • M63×1.5: Ø32–44 mm
  • Supplied with plastic locknut and seal gasket
  • Stopping plug available on request
Area Classification
  • Suitable for:
    • Zone 1 and Zone 2
    • Zone 21 and Zone 22
