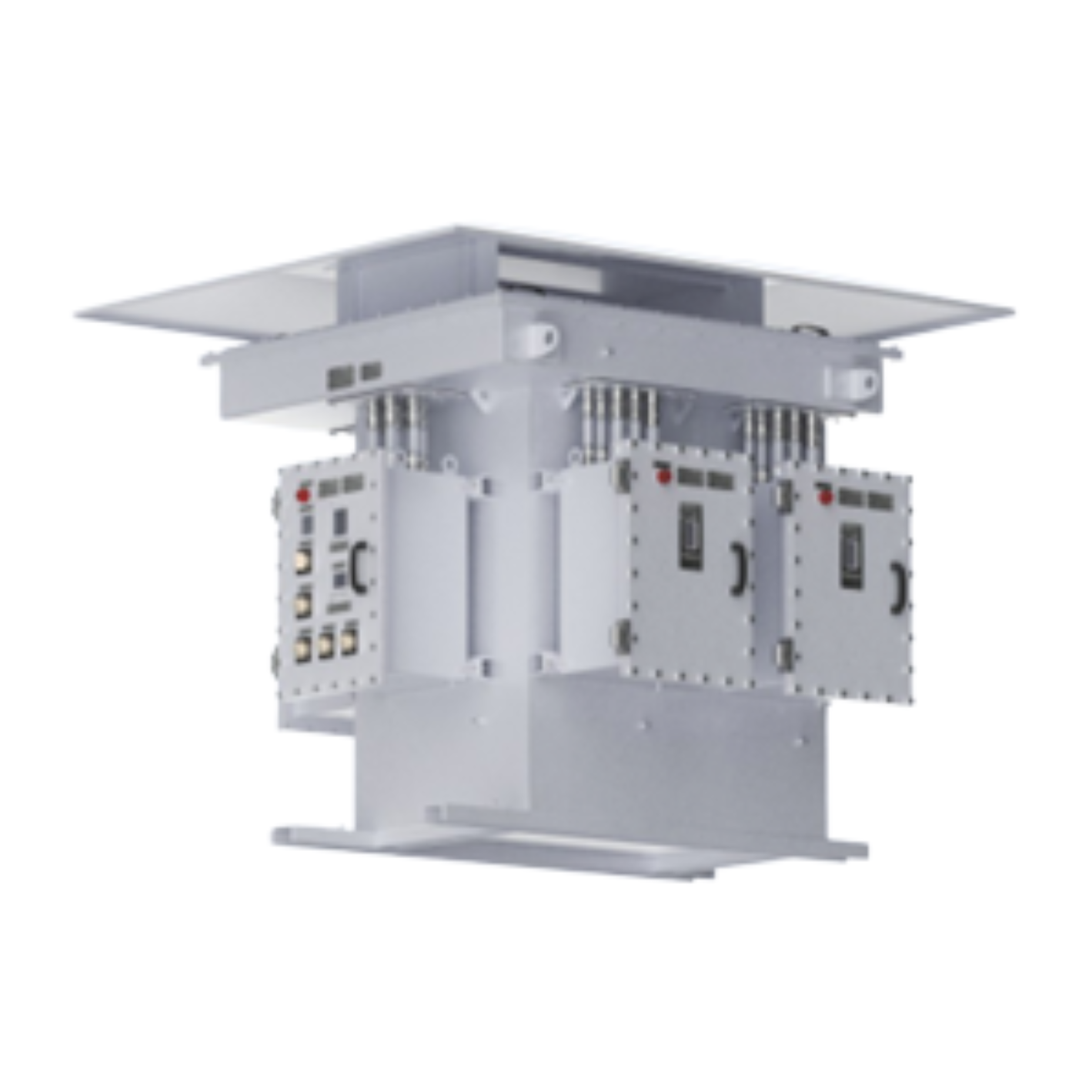

HR-CPTR

Explosion protection

Global (IECEx)
Gas and dust
IECEx (applied for)
Ex db eb IIB+H2 T4 Gb
Ex tb IIIC T130°C Db

Europe (ATEX)
Gas and dust
ATEX (applied for)
II 2 G Ex db eb IIB+H2 T4 Gb
II 2 D Ex tb IIIC T130°C Db

Certificates

IECEx; ATEX; CU-TR

Conformity to standards

EN 60079-0, EN 60079-1, EN 60079-6, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-6, IEC 60079-31

Ambient temperature

-60°C~+60°C

Enclosure material

Carbon steel, powder coated surface, window grey (RAL7040) or Stainless steel

Exposed fastener

Stainless steel

Degree of protection

IP66

Rated input voltage

Single phase 115V–240V AC 50/60Hz
Three phases Max. 480V AC 50/60Hz

Rated output voltage

Output voltage for each circuit Max. 50V DC

Rated output current

Output current for each circuit Max. 50A

Rated output power

Output power for each circuit Max. 2500W

Cable entries

Standard M□×1.5 plug (the size of entry hole should be processed in accordance with actual requirements), NPT plug on request

Cable gland (optional)

DQM-II (Ex d) or DQM-III (Ex d) is recommended. Please see P6/24–39

Entry direction

Bottom

Mounting

Pedestal type
