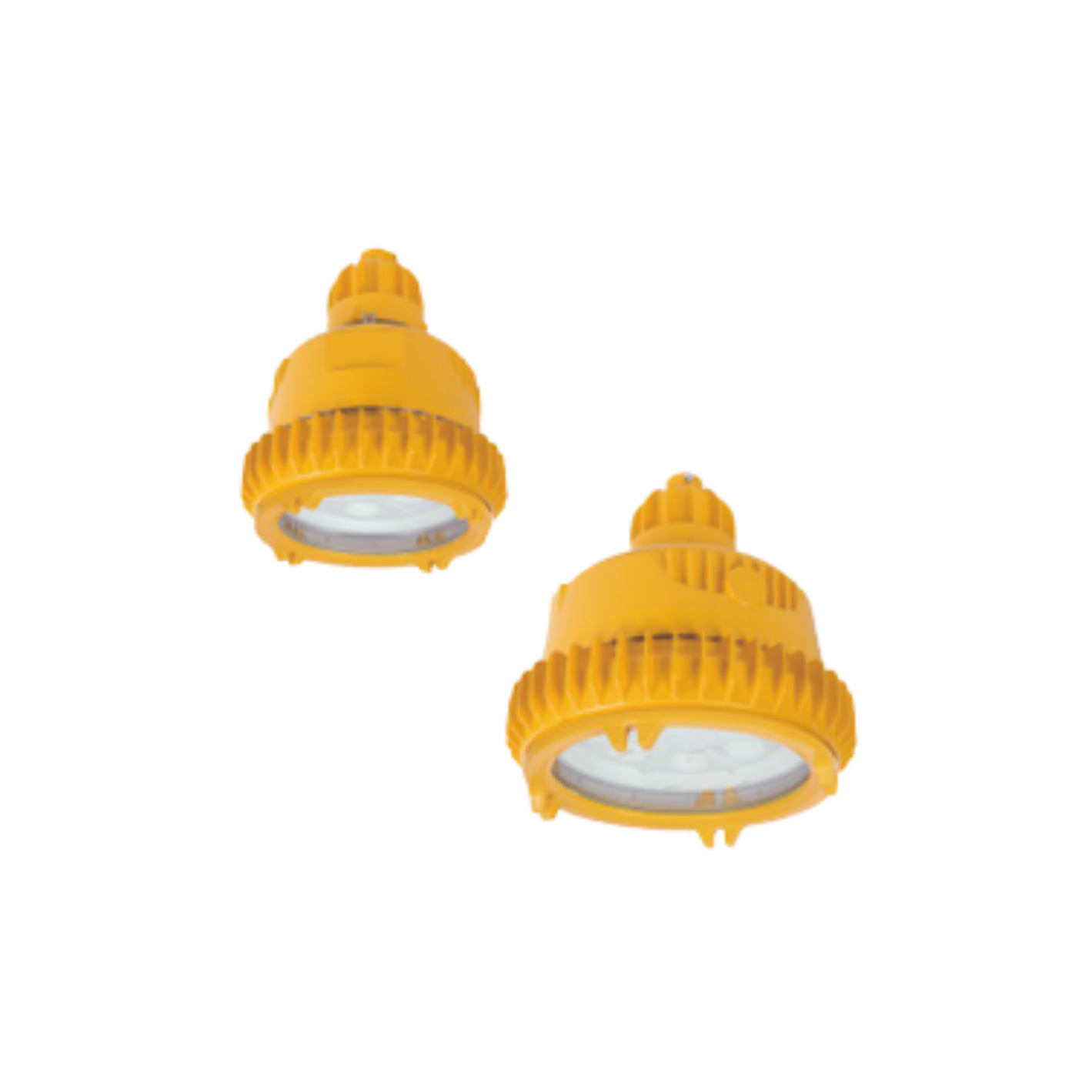

HRD95-☐Z Series

• Explosion protection to
– CENELEC
– IEC
– NEC

• Can be used in
– Zone 1 and Zone 2
– Zone 21 and Zone 22
– Class I, Zone 1 and Zone 2
– Class I, Division 2, Groups A, B, C, D

• Two enclosure types: 90, 160

• Isolated LED lamp compartment, CC-CV (constant current – constant voltage) power controller compartment and terminal compartment; wind-convection heat dissipation structure

• International brand white light LED, reasonable arrangement of multi LED, high lighting efficiency and long service life

• Two types of light distribution: spotlight and floodlight, which can be selected on request

• Low-maintenance due to long service life, which is up to 100,000 operating hours

• Luminaries feature adjustable brightness for efficient energy-saving lighting

• When used with an intelligent lighting system, they enable centralized intelligent management and control of lighting equipment

Explosion protection

Global (IECEx)
Gas and dust
IECEx (applied for)
Ex db op is IIC T□ Gb
Ex tb op is IIIC T□ Db IP66

Europe (ATEX)
Gas and dust
ATEX (applied for)
II 2 G Ex db op is IIC T□ Gb
II 2 D Ex tb op is IIIC T□ Db IP66

• See Selection Table P2/55–56

Certificates

IECEx; ATEX; CU-TR

Conformity to standards

EN 60079-0, EN 60079-1, EN 60079-28, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-28, IEC 60079-31

Material

Enclosure
Copper-free aluminium alloy, powder coated surface, yellow (RAL1021)

Glass cover
Toughened glass, stands 4J impact

Exposed fastener
Stainless steel

LED driver
Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95,
with function of distributed current, constant current, surge-proof and anti-electromagnetic interference,
and protection against overcurrent, open circuit, and short circuit

Lamp

Lamp specification
LED module

Lamp power (W)
Type 60: 60W, 90W
Type 160: 120W, 160W

Colour rendering index (Ra)
≥80

Colour temperature (CCT)
5700K

Note: cool white is available in general. Warm white or nature white is optional, please specify when ordering.

Rated voltage

100–277V AC 50/60Hz

Earthing protection

M5 (internal & external earth bolts)

Degree of protection

IP66

Ambient temperature

-40°C~+55°C (+40°C)

Terminal

3×1.5–4mm² (L+N+PE)

Mounting

Bracket type, hook type, pole type, pendant pole type, wall type, ceiling type

Cable entries

1×M25×1.5 (hook type, pole type, pendant pole type)
2×M25×1.5 (bracket type)
4×M25×1.5 (wall type, ceiling type)

Cable gland

DQM-II (Ex d) or DQM-III (Ex d) is recommended.
