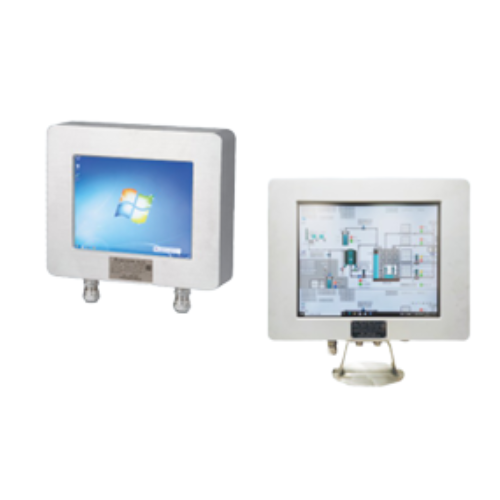

WRBPC-XM Series

• Explosion protection to
– CENELEC
– IEC

• Can be used in
– Zone 1 and Zone 2
– Zone 21 and Zone 22

Explosion protection

Global (IECEx)
Gas and dust
IECEx (applied for)
Ex db IIB T6 Gb
Ex db IIC T6 Gb
Ex tb IIIC T80°C Db

Europe (ATEX)
Gas and dust
ATEX (applied for)
II 2 G Ex db IIB T6 Gb
II 2 G Ex db IIC T6 Gb
II 2 D Ex tb IIIC T80°C Db

Certificates

IECEx; ATEX

Conformity to standards

IEC 60079-0, IEC 60079-1, IEC 60079-31
EN 60079-0, EN 60079-1, EN 60079-31

Degree of protection

IP66

Brightness

350cd/m² (600cd/m² optional)

Operating mode

Finger or touch pen operation (explosion-proof keyboard and mouse optional)

CPU

Intel Core i5 / Intel Core i7

Memory

8GB (16GB, 32GB optional)

Storage

128GB SSD / 256G / 512G / 1T SSD (optional)

Ethernet

2×10/100/1000 Mbps Ethernet / RJ45

Serial port

4×RS485 / RS422 / RS232

USB

USB 3.0, with extension capability for 2 USB 2.0

Operating system

Win 7, Win 10, Win 11, Kylin (Domestic version)

Operating temperature

-20°C~+75°C

Operating voltage

220VAC, 110VAC / 24VDC

Installation method

Wall-mounted, flush-mounted on front panel, optional column/cantilever-wall-mounted console
