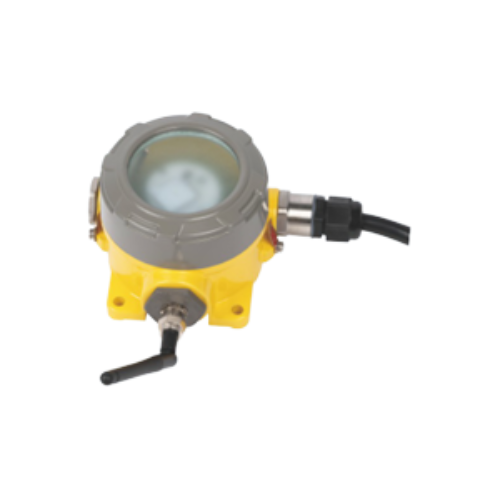

WRD-CG/☐ Wireless

• Explosion protection to
– CENELEC
– IEC
– NEC

• Can be used in
– Zone 2
– Zone 21 and Zone 22

• Suitable for automatic on/off control of lighting fixtures such as street lights, corridor lights, and warehouse lights in petrochemical industrial parks. Automatically adjusts based on natural light intensity, achieving the function of turning off during the day and turning on at night

• Applicable to intelligent control fields including environmental meteorology, streetlight control, building automation, power monitoring, photovoltaic system integration, and illumination equipment testing

Explosion protection

Global (IECEx)
Gas and dust
IECEx (applied for)
Ex db IIC T6 Gb
Ex tb IIIC T80°C Db

Europe (ATEX)
Gas and dust
ATEX (applied for)
II 2 G Ex db IIC T6 Gb
II 2 D Ex tb IIIC T80°C Db

Certificates

IECEx; ATEX

Conformity to standards

EN 60079-0, EN 60079-1, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-31

Input Voltage

Photo Sensor: DC 5–12V
Microwave Sensor: AC 220/230V

Max. Input peak current

0.6A

Max. RMS current

0.1A

Max. Power dissipation

0.85W

Max. Input surge voltage

18V

Sensing distance

1–15m (available)

Brightness (when no one is around)

0–50% (available)

Brightness (when someone is present)

60–100% (available)

Service life

≥100,000h, 70°C

Dimming output voltage

PWM (5V or 10V), adjustable per customer requirements

Maximum absolute limit current

40mA
