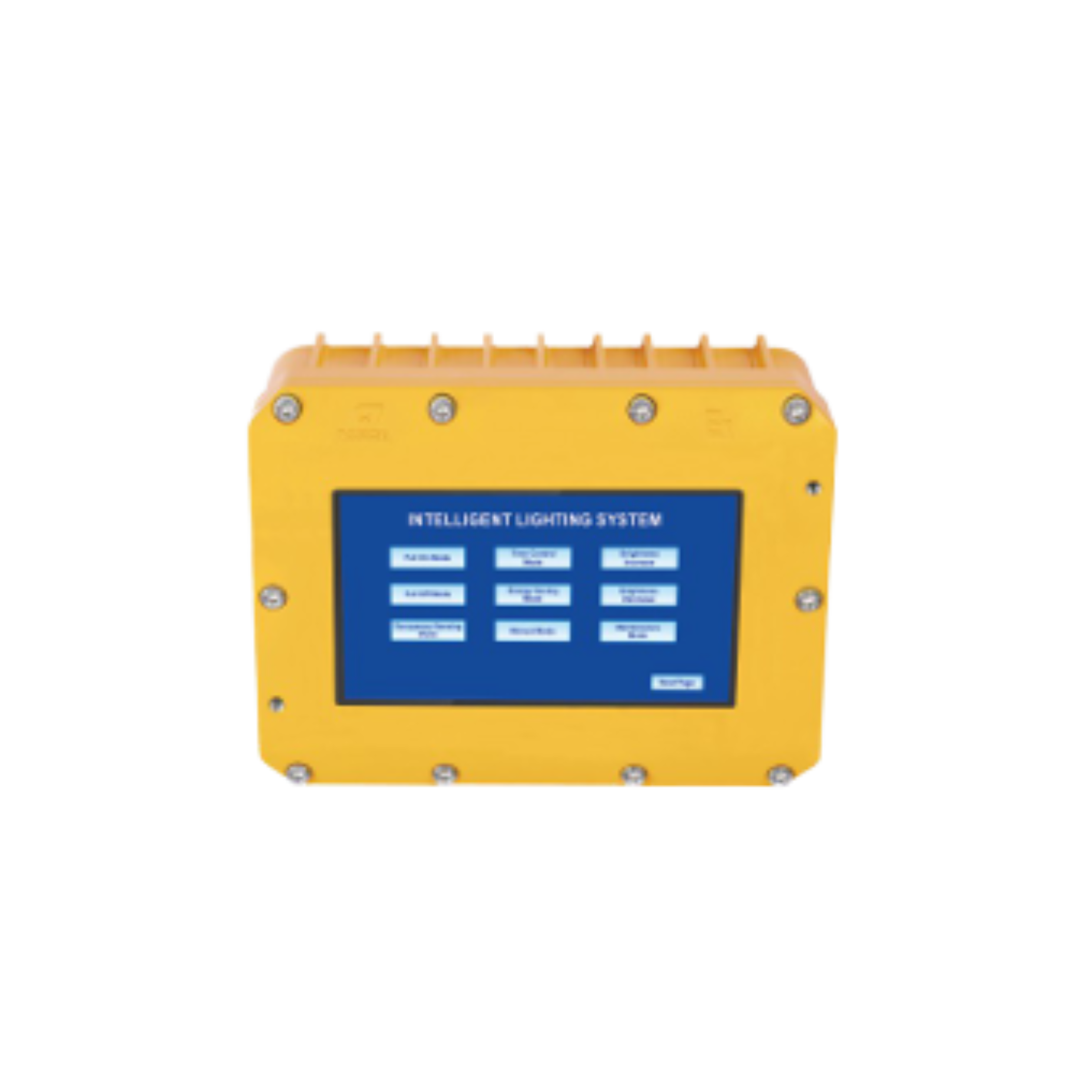

WRG810

• Explosion protection to
– CENELEC
– IEC
– NEC

• Can be used in
– Zone 2
– Zone 21 and Zone 22

• Intelligent Control: Local smart control terminal enables on-site setting of various scene modes and controls lighting equipment status, including lights on/off, dimming, etc.

• Intelligent Communication: Uses industrial Zigbee wireless communication with flexible connectivity; no need to run communication cables, making on-site installation easy

• Smart Upgrades: Supports both remote and local updates for hassle-free system maintenance later on

• Easy Operation: Touch-proof explosion-proof tablet with intuitive interface simplifies operation and improves user experience for frontline staff

Explosion protection

Global (IECEx)
Gas and dust
IECEx (applied for)
Ex db IIC T6 Gb
Ex tb IIIC T80°C Db

Europe (ATEX)
Gas and dust
ATEX (applied for)
II 2 G Ex db IIC T6 Gb
II 2 D Ex tb IIIC T80°C Db

Certificates

IECEx; ATEX

Conformity to standards

EN 60079-0, EN 60079-1, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-31

Operating voltage

AC220/230V 50/60Hz

Protection rating

IP66

Communication method

Zigbee wireless, PLC, web, or fiber optic

Screen size

8 inches

Cable entries

Cables: M25×1.5 entry size compatible with cables from Φ9mm to Φ16mm
Optional: 2×M20×1.5 and 1×M25×1.5 entry sizes
