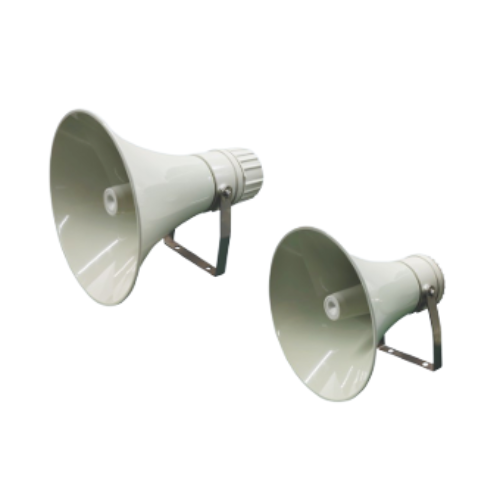

BHY

• Explosion protection to
– CENELEC
– IEC

• Can be used in
– Zone 1 and Zone 2
– Zone 21 and Zone 22

Explosion protection

Global (IECEx)
Gas and dust
IECEx (applied for)
Ex db IIC T6 Gb
Ex tb IIIC T80°C Db

Europe (ATEX)
Gas and dust
ATEX (applied for)
II 2 G Ex db IIC T6 Gb
II 2 D Ex tb IIIC T80°C Db

Certificates

IECEx; ATEX

Conformity to standards

IEC 60079-0, IEC 60079-1, IEC 60079-31
EN 60079-0, EN 60079-1, EN 60079-31

Type

A: Fixed impedance 8Ω, 16Ω
B: Constant voltage 70V, 100V, 110V, 120V

Power

5W, 10W, 15W, 20W, 25W, 30W, 35W, 50W

Cable entries

M20×1.5, NPT1/2 entry size

Audio voltage

70V, 100V, 110V, 120V

Protection rating

IP66

Corrosion protection rating

WF2

Temperature range

-40°C~+70°C
