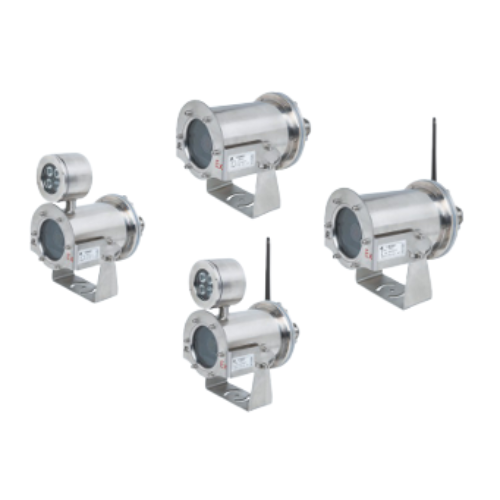

BJK-S/G☐ Series

• Explosion protection to
– CENELEC
– IEC

• Can be used in
– Zone 1 and Zone 2
– Zone 21 and Zone 22

• Product features: intelligent control, intelligent monitoring, intelligent communication, intelligent recognition, and intelligent analysis

Explosion protection

Global (IECEx)
Gas and dust
IECEx TUR 22.0044X
Ex db IIC T6 Gb
Ex tb IIIC T80°C Db

Europe (ATEX)
Gas and dust
TÜV 22 ATEX 8864 X
II 2 G Ex db IIC T6 Gb
II 2 D Ex tb IIIC T80°C Db

Certificates

IECEx; ATEX

Conformity to standards

IEC 60079-0, IEC 60079-1, IEC 60079-31
EN 60079-0, EN 60079-1, EN 60079-31

Rated voltage

176–264V AC, AC24V, DC24V, DC12V

Material

304 stainless steel or 316 stainless steel

Pixel

2 million, 4 million, 8 million (optional)

Optical zoom

4×, 25×, 32× (optional)

Focal length

2.8–12mm, 4.8–120mm, 5.9–188.8mm (optional)

Infrared function

Optional

Image sensor

1/1.8″ progressive scan CMOS

Min. illumination

Color: 0.0005 lux; Monochrome: 0.0001 lux

Signal-to-noise ratio

52dB

White balance

Manual white balance, indoor, outdoor, daylight, sodium lamp, auto white balance, auto tracking white balance, locked white balance

Day/Night mode

Auto ICR color-to-black

Video compression

H.264/H.265

Angle adjustment

Manual half-fixed pan-tilt mount with adjustable up/down and left/right angles

Intelligent features

Supports region intrusion detection, boundary crossing detection, entry/exit region detection, loitering detection, crowd gathering detection, fast motion detection, parking detection, audio anomaly detection, motion detection, video obstruction detection

Transmission method

Wired, 4G/5G/WiFi (optional)

Mounting bracket

ZJ001 wall-mounted bracket

Bracket material

Q235 carbon steel, 304 stainless steel, 316 stainless steel (optional)

Protection rating

IP68

Temperature range

-40°C~+60°C

Weight

5kg
