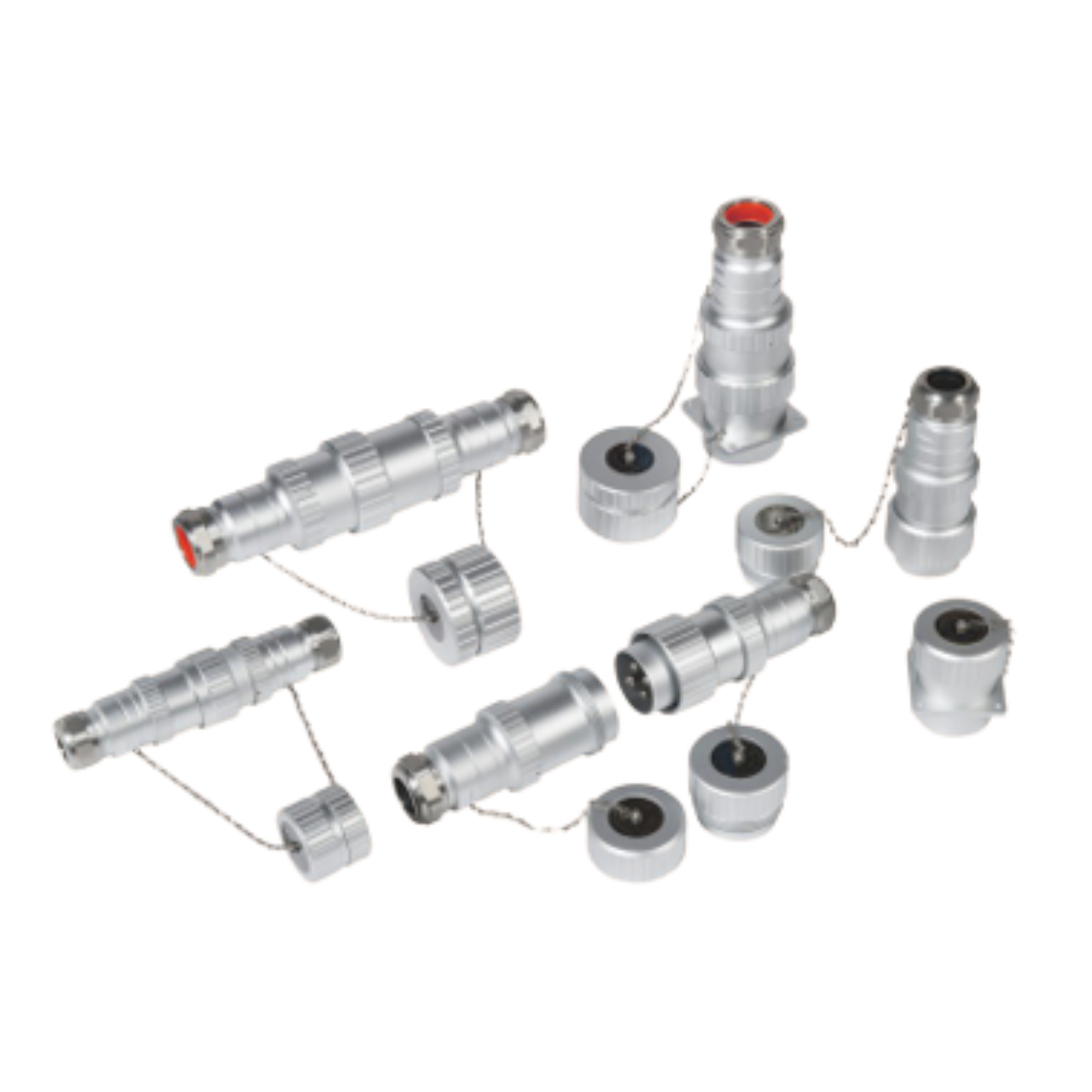

BLJ85 Series

Explosion-proof Plug and Sockets

Overview

● Explosion protection to

  • CENELEC
  • IEC
  • NEC

● Can be used in
Zone 2
Zone 21 and Zone 22
Class I, Zone 2
Class I, Division 2, Groups A, B, C, D

● 4 enclosure types; 9 current ratings (10A, 16A, 20A, 25A, 32A, 50A, 60A, 63A, 100A); 3P, 4P and 5P

● Copper-free Aluminium Alloy enclosure, anodic-oxidation treatment for surface

Specifications

Explosion protection
Global (IECEx)

IECEx CNEX 23.0003X

Gas and dust

Ex ec IIC T6/T5 Gc
Ex tb IIIC T80°C Db

Europe (ATEX)

CNEX 23 ATEX 0006X (Gas), CNEX 23 ATEX 0007X (Dust)

Gas and dust

II 3 G Ex ec IIC T6/T5 Gc
II 2 D Ex tb IIIC T80°C Db

Certificates

IECEx; ATEX

Conformity to standards

EN 60079-0, EN 60079-7, EN 60079-31
IEC 60079-0, IEC 60079-7, IEC 60079-31

Enclosure material

Copper-free Aluminium Alloy, anodic-oxidation treatment for surface

Exposed fastener

Stainless steel

Rated voltage

AC 380…415V, 200…250V, 100…130V; DC 50…250V; AC/DC 12…48V

Rated current

10A, 16A

Degree of protection

IP66

Ambient temperature

T6: -60°C ~ +40°C, T5: -60°C ~ +60°C

Cable gland

Suitable for cables of Φ9~Φ14 (mm)
