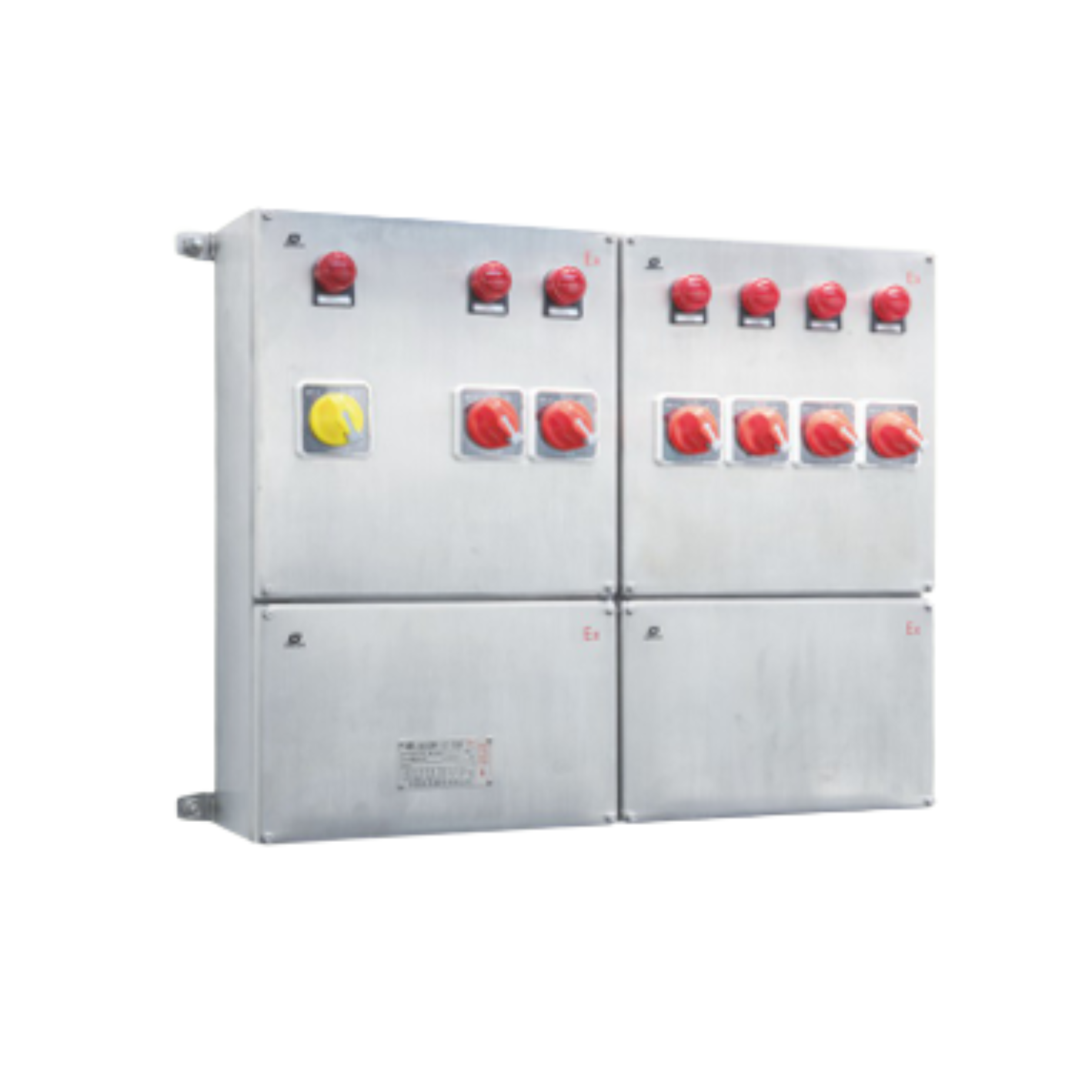

Distribution Boxes
● Explosion protection to
● Can be used in
Zone 1 and Zone 2
Zone 21 and Zone 22
Class I, Zone 1 and Zone 2
Class I, Division 2, Groups A, B, C, D
● Enclosure for modular combination (Ex e)
● Main switch and branch switch are operated with external rotary actuator
● Internal wiring to the terminal is finished
● International brand of explosion-proof terminal blocks
● Enclosure: stainless steel
● Entries plugged. Cable glands on request (see P6/19)
● Special requirements on request
IECEx CQM 22.0002X
Ex db eb mb IIC T5 Gb (Ta: -20°C ~ +40°C)
Ex db eb mb IIC T4 Gb (Ta: -20°C ~ +55°C)
Ex tb IIIC T80°C Db (Ta: -20°C ~ +55°C)
When the product is equipped with an explosion-proof heater, the marking is:
Ex db eb mb IIC T4 Gb (Ta: -20°C ~ +45°C)
Ex tb IIIC T80°C Db (Ta: -20°C ~ +45°C)
TÜV CY 22 ATEX 0206669X
II 2 G Ex db eb mb IIC T5 Gb (Ta: -20°C ~ +40°C)
II 2 G Ex db eb mb IIC T4 Gb (Ta: -20°C ~ +55°C)
II 2 D Ex tb IIIC T80°C Db (Ta: -20°C ~ +55°C)
When the product is equipped with an explosion-proof heater, the marking is:
II 2 G Ex db eb mb IIC T4 Gb (Ta: -20°C ~ +45°C)
II 2 D Ex tb IIIC T80°C Db (Ta: -20°C ~ +45°C)
IECEx; ATEX; CU-TR
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-18, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-18, IEC 60079-31
Max. AC 690V 50/60Hz, Max. DC 500V
Max. 250A
Stainless steel
Stainless steel
Ex e
BL8060 (Please see P5/72~77)
Note: earth leakage protection on request
BL8060 (Please see P5/72~77)
Note: earth leakage protection on request
International brand of explosion-proof terminal blocks
Red
IP66
-20°C ~ +55°C (+45°C/+40°C)
Standard M□×1.5 plug (see the Selection Table on P5/68)
DQM-II (Ex eb, plastic) is recommended
Bottom
Surface type (standard)
