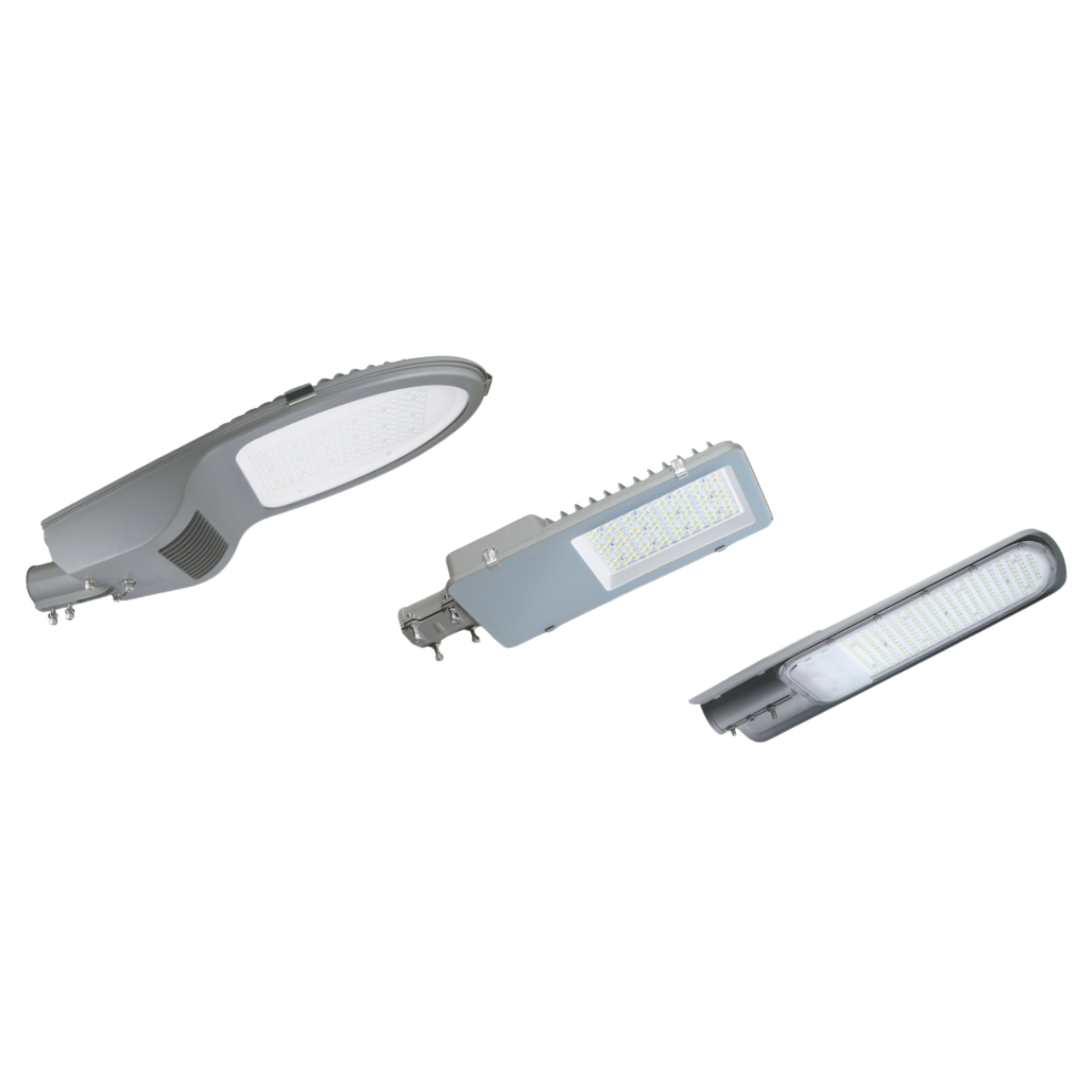

FAM-E Series

High Efficiency Energy-Saving LED Street Lamps

Overview

● Aluminium alloy heat dissipation enclosure

● Tempered glass transparent cover with high light transmittance

● Equipped with multiple international brand LED lamps, offering high luminous efficiency (110–120 lm/W)

● High-precision lenses provide improved light utilization and reduce power consumption

● Specialized constant current driving power with wide voltage input, constant current output, power factor ≥0.95, and protection against lightning, surge, and interference

● Corrosion resistance: WF1, WF2 (optional)

Specifications

Model	Power	Luminous Flux	Enclosure Type	Weight
FAM-E01 80	80W	≥9600 lm	I	4.7 kg
FAM-E01 100	100W	≥12000 lm	I	7.4 kg
FAM-E01 120	120W	≥15000 lm	II	7.5 kg
FAM-E01 160	160W	≥19500 lm	II	10.7 kg
FAM-E01 200	200W	≥24000 lm	III	10.9 kg

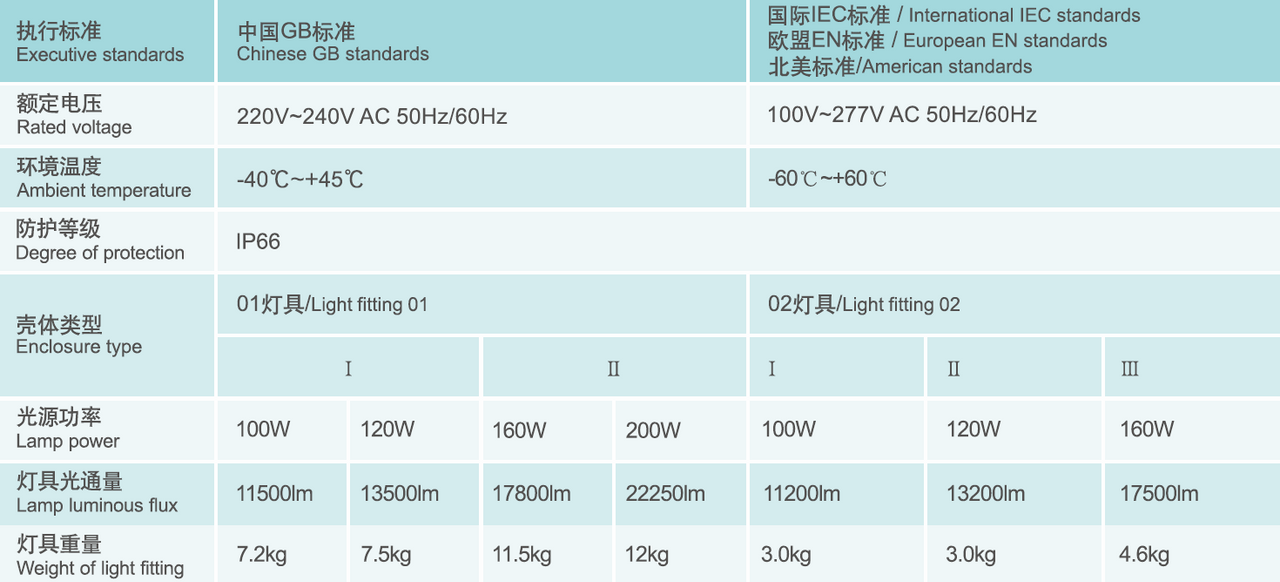

General Technical Parameters

● Executive standards: Chinese GB standards
● Rated voltage: 220–240V AC, 50/60Hz

● Executive standards: IEC / EN / American standards
● Rated voltage: 100–277V AC, 50/60Hz

● Ambient temperature: -40°C ~ +55°C (optional: -60°C ~ +60°C)

● Degree of protection: IP66

● Cable gland (optional): M20×1.5 entry
● Suitable cable diameter: Φ6mm ~ Φ10mm

Data Sheet
