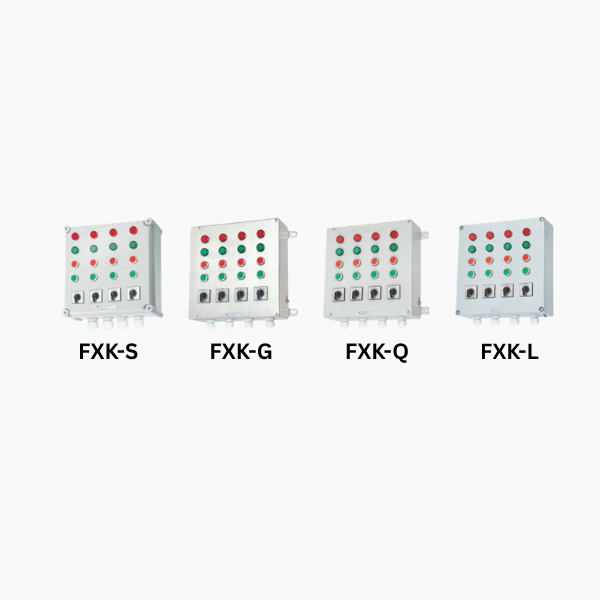

FXK Series

Weatherproof Control Boxes

Overview

● Specify the product type and specifications when placing an order

● Provide the electrical schematic diagram if required

● Indicate the quantity and size of inlet/outlet or cable

● Specify any additional special requirements

● For cable wiring, please indicate if steel pipe wiring is required

Specifications

Parameter	FXK-L	FXK-G	FXK-S	FXK-Q
GB Voltage	220/380V, 230/400V	220/380V, 230/400V	220/380V, 230/400V	220/380V, 230/400V
IEC/EN Voltage	440V (Max. 1000V AC / 1500V DC optional)	440V (Max. 1000V AC / 1500V DC optional)	440V (Max. 1000V AC / 1500V DC optional)	440V (Max. 1000V AC / 1500V DC optional)
American Voltage	480V	480V	480V	480V
Rated Current	3A (optional)	3A (optional)	3A (optional)	3A (optional)
Ambient Temperature	-40°C ~ +55°C (-60°C ~ +60°C optional)	-40°C ~ +55°C (-60°C ~ +60°C optional)	-40°C ~ +55°C (-60°C ~ +60°C optional)	-40°C ~ +55°C (-60°C ~ +60°C optional)
Protection Degree	IP65 / IP66 (optional)	IP65 / IP66 (optional)	IP65 / IP66 (optional)	IP65 / IP66 (optional)
Corrosion-proof	WF2	WF2	WF2	WF2
Cable Entry Thread	M25×1.5	M25×1.5	M25×1.5	M25×1.5
Cable Diameter	Φ9–Φ16 mm	Φ9–Φ16 mm	Φ9–Φ16 mm	Φ9–Φ16 mm
Enclosure Material	Aluminum alloy	Stainless steel	SMC (PC optional)	Welded steel plate
