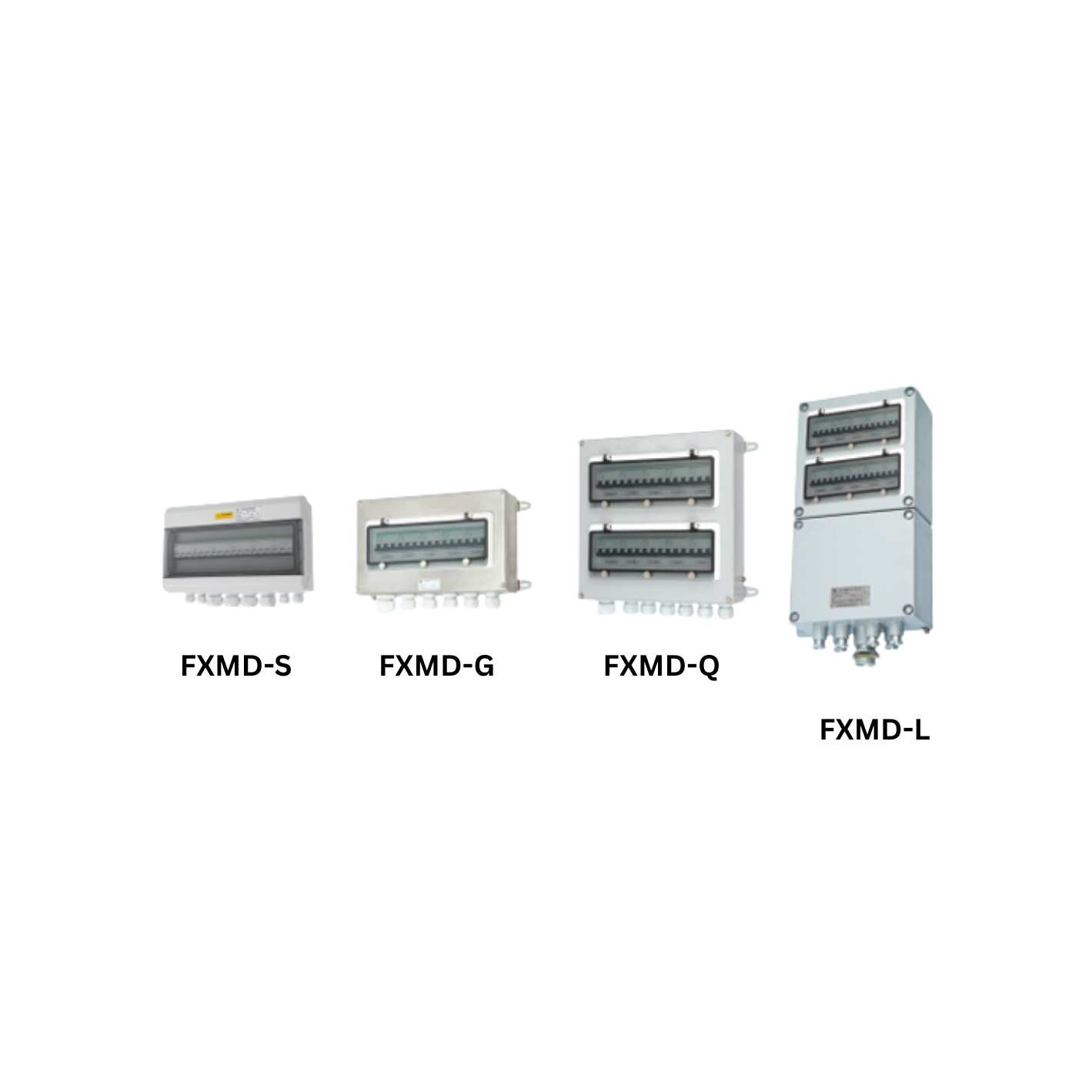

FXMD Series

Weatherproof Illumination (Power) Distribution Boxes

Overview

● Enclosures are available in multiple material options:
  • Engineering plastic (PC/SMC) with a sleek appearance and strong resistance to aging, deformation, impact, and corrosion
  • Stainless steel with brushed finish, offering excellent corrosion resistance
  • Carbon steel with high-pressure electrostatic powder coating for enhanced durability
  • Die-cast aluminum alloy with powder coating for superior corrosion protection
● Suitable for power distribution and circuit switching, including overload and short-circuit protection functions
● All external fasteners are made of stainless steel, while sealing components use silicone rubber to ensure reliable sealing performance
● Designed for cable wiring using composite sealing cable glands (steel conduit wiring available upon request)
● The enclosure adopts a labyrinth-type sealing structure, providing excellent waterproof performance
● Multiple cable entry directions are available, allowing flexible installation based on user requirements
● Terminal blocks use internationally recognized brands, ensuring safe, reliable, and convenient wiring with various current ratings
● Standard configuration adopts composite sealing type (FQM-type with M threads)
● Corrosion resistance rating: WF2

Specifications

Parameter FXMD-L FXMD-Q FXMD-G FXMD-S
Standards Chinese GB Chinese GB Chinese GB Chinese GB
Rated Voltage 380V / 400V / 690V 380V / 400V / 690V 380V / 400V / 690V 380V / 400V / 690V
Ambient Temperature -40°C~+55°C (-60°C~+60°C optional) -40°C~+55°C (-60°C~+60°C optional) -40°C~+55°C (-60°C~+60°C optional) -40°C~+55°C (-60°C~+60°C optional)
Main Circuit Current Max. 630A Max. 630A Max. 630A Max. 630A
Branch Circuit Current 1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A Same as FXMD-L Same as FXMD-L Same as FXMD-L
Protection Degree IP65 / IP66 (optional) IP65 / IP66 (optional) IP65 / IP66 (optional) IP65 / IP66 (optional)
Corrosion-proof WF2 WF2 WF2 WF2
Built-in Components Schneider / ABB brands Schneider / ABB brands Schneider / ABB brands Schneider / ABB brands
Enclosure Material Aluminum alloy Welded steel plate Stainless steel SMC (PC optional)
