Weatherproof Control Stations
● Button head code
● Contact code
● Quantity
● Multiple button configurations can be combined
● Total quantity of buttons
● Indicator code
● Quantity
● Multiple indicator configurations can be combined
● Total quantity of indicators
● Measuring range
● Quantity
● Voltmeter / Ammeter selection
● Total quantity of meters
● Switch code
● Quantity
● Multiple switch configurations can be combined
● Total quantity of switches
● Button, meter, indicator, and switch codes can be selected from P143–P148
● Special requirements should be specified when ordering

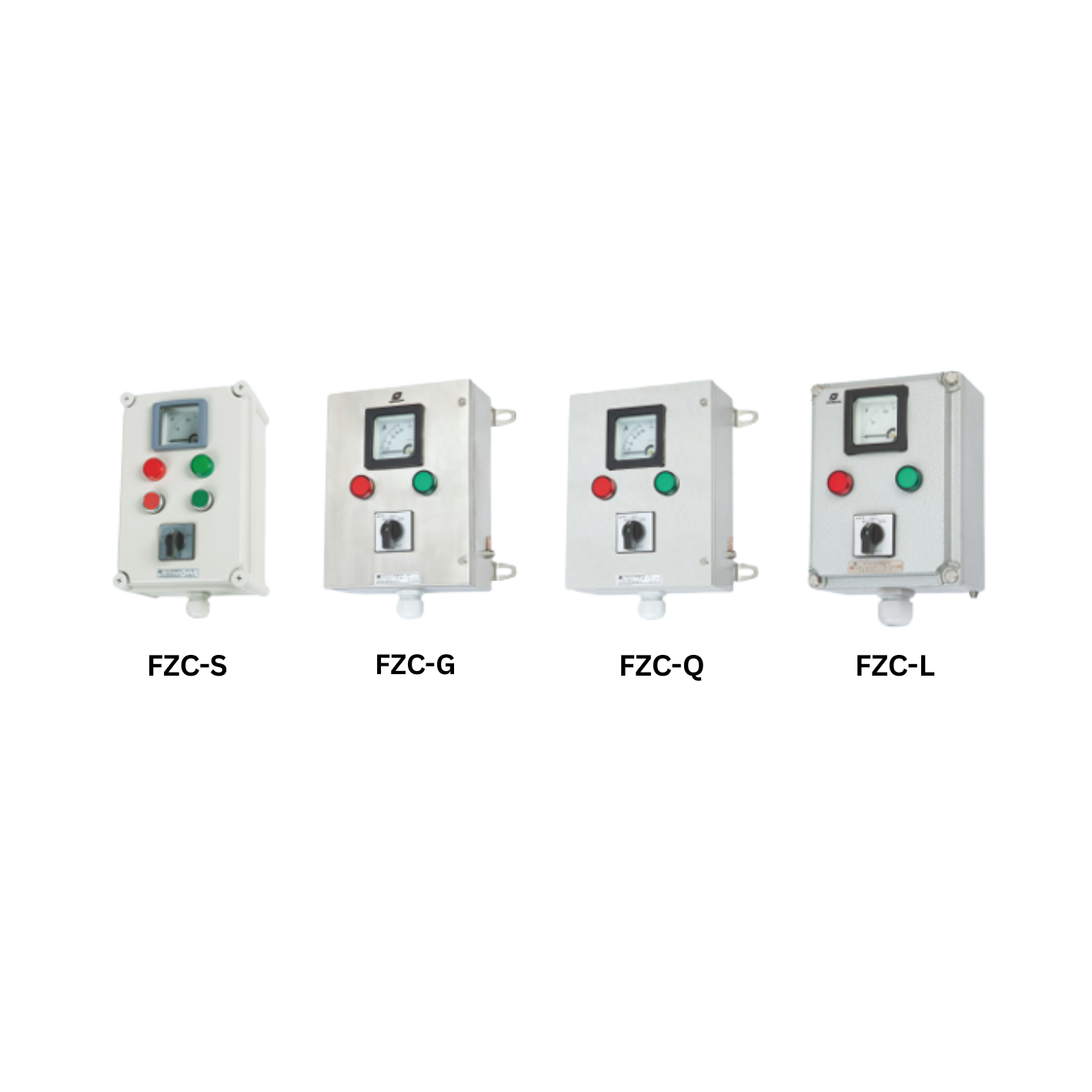

| Parameter | FZC-L | FZC-Q | FZC-G | FZC-S |
|---|---|---|---|---|
| GB Voltage | 220/380V, 230/400V | 220/380V, 230/400V | 220/380V, 230/400V | 220/380V, 230/400V |
| IEC/EN Voltage | 440V (1000V AC / 1500V DC opt.) | Same | Same | Same |
| US Voltage | 480V | 480V | 480V | 480V |
| Temp | -40~+55°C (-60~+60 opt.) | Same | Same | Same |
| Current | 3A (opt.) | Same | Same | Same |
| IP Rating | IP65/IP66 (opt.) | Same | Same | Same |
| Corrosion | WF2 | WF2 | WF2 | WF2 |
| Usage | AC-15 / DC-13 | Same | Same | Same |
| Cable Thread | M25×1.5 | Same | Same | Same |
| Cable Size | Ø9–16 mm | Same | Same | Same |
| Mounting | Hang / Vert | Same | Same | Same |
| Material | Al alloy | Welded steel | SS | SMC / PC (opt.) |
