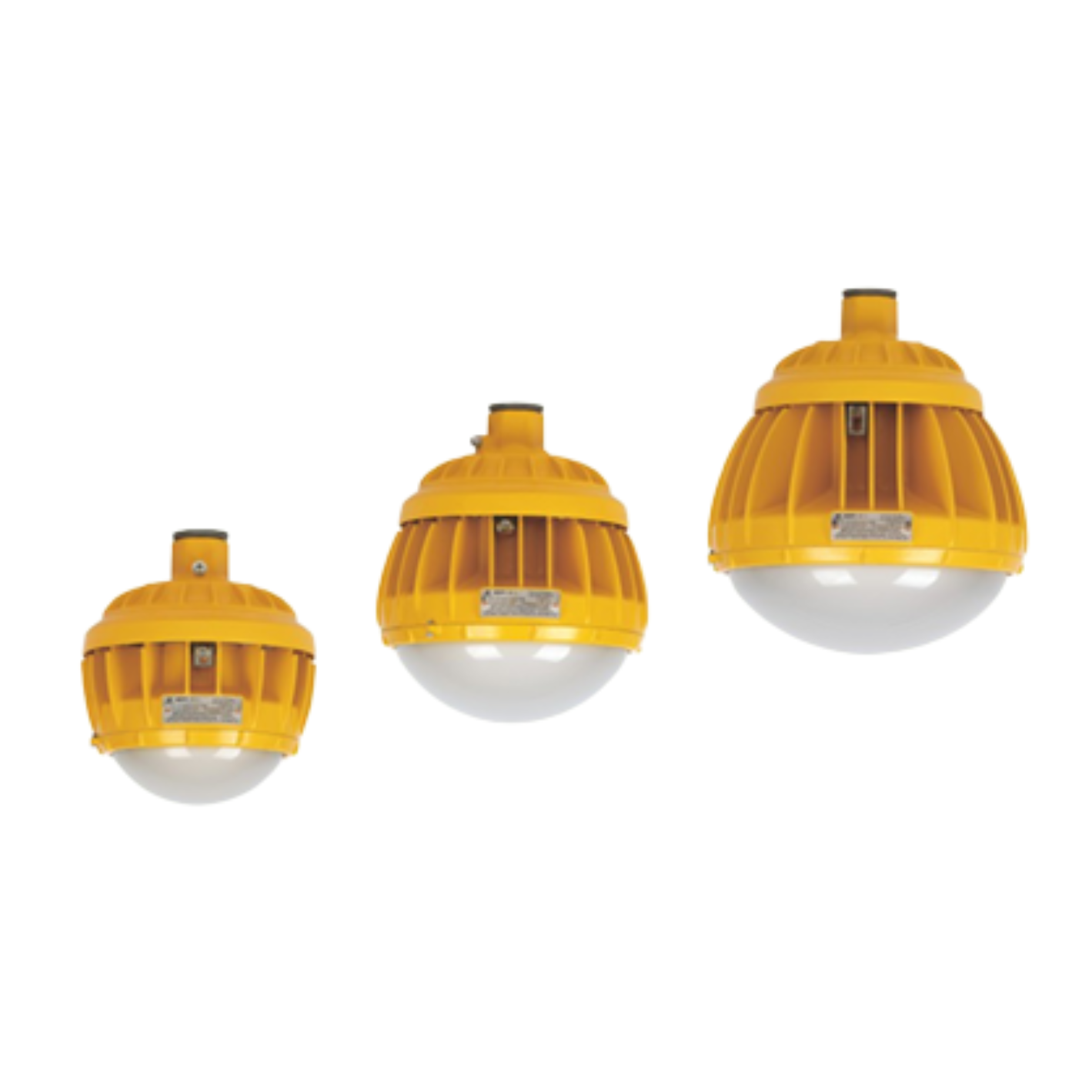

HRD99 Series

● Explosion protection to

• CENELEC
• IEC
• NEC

● Can be used in
Zone 1 and Zone 2
Zone 21 and Zone 22
Class I, Zone 1 and Zone 2
Class I, Division 1, Groups A, B, C, D

● Applicable lamp and power (max. 100W)
LED: 20W, 30W, 50W, 70W, 80W, 100W

● Isolated LED lamp compartment, CC-CV (constant current – constant voltage) power controller

Explosion protection

Global (IECEx)

IECEx CQM 25.0019X

Gas and dust

Ex db IIB T6/T5 Gb
Ex db IIC T6/T5 Gb
Ex tb IIIC T80°C/T95°C Db

Europe (ATEX)

TÜV CY 25 ATEX 0207323X

Gas and dust

II 2 G Ex db IIB T6/T5 Gb
II 2 G Ex db IIC T6/T5 Gb
II 2 D Ex tb IIIC T80°C/T95°C Db

Certificates

IECEx; ATEX

Conformity to standards

EN 60079-0, EN 60079-1, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-31

Material

Enclosure

Copper-free aluminium alloy, powder coated surface, yellow (RAL1021)

Transparent cover

Polycarbonate, stands 4J impact

Exposed fastener

Stainless steel

LED driver

Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95, with function of distributed current, constant current, surge-proof and anti-electromagnetic interference, and protection against overcurrent, open circuit, and short circuit

Lamp

Lamp specification

Integrated LED, Multiple LED

Lamp power (W)

20W, 30W, 50W, 70W, 80W, 100W

Colour rendering index (Ra)

≥80

Colour temperature (CCT)

5700K
Note: cool white is available in general. Warm white or nature white is optional, please specify when ordering

Rated voltage

220~240V AC 50/60Hz

Earthing protection

M5 (internal & external earth bolts)

Degree of protection

IP66

Ambient temperature

IIB T6 / IIC T80°C for Tamb: -40°C ~ +40°C, only for 20W, 30W, 50W, 70W
IIB T5 / IIC T95°C for Tamb: -40°C ~ +58°C, only for 20W, 30W, 50W, 70W
IIC T6 for Tamb: -20°C ~ +40°C, for 20W, 30W, 50W, 70W, 80W, 100W
IIC T5 for Tamb: -20°C ~ +58°C, for 20W, 30W, 50W, 70W, 80W, 100W

Terminal

3×1.5~4mm² (L+N+PE)

Mounting

Bracket type, Ceiling type, Pendant type, Pole type

Cable entries

M25×1.5
