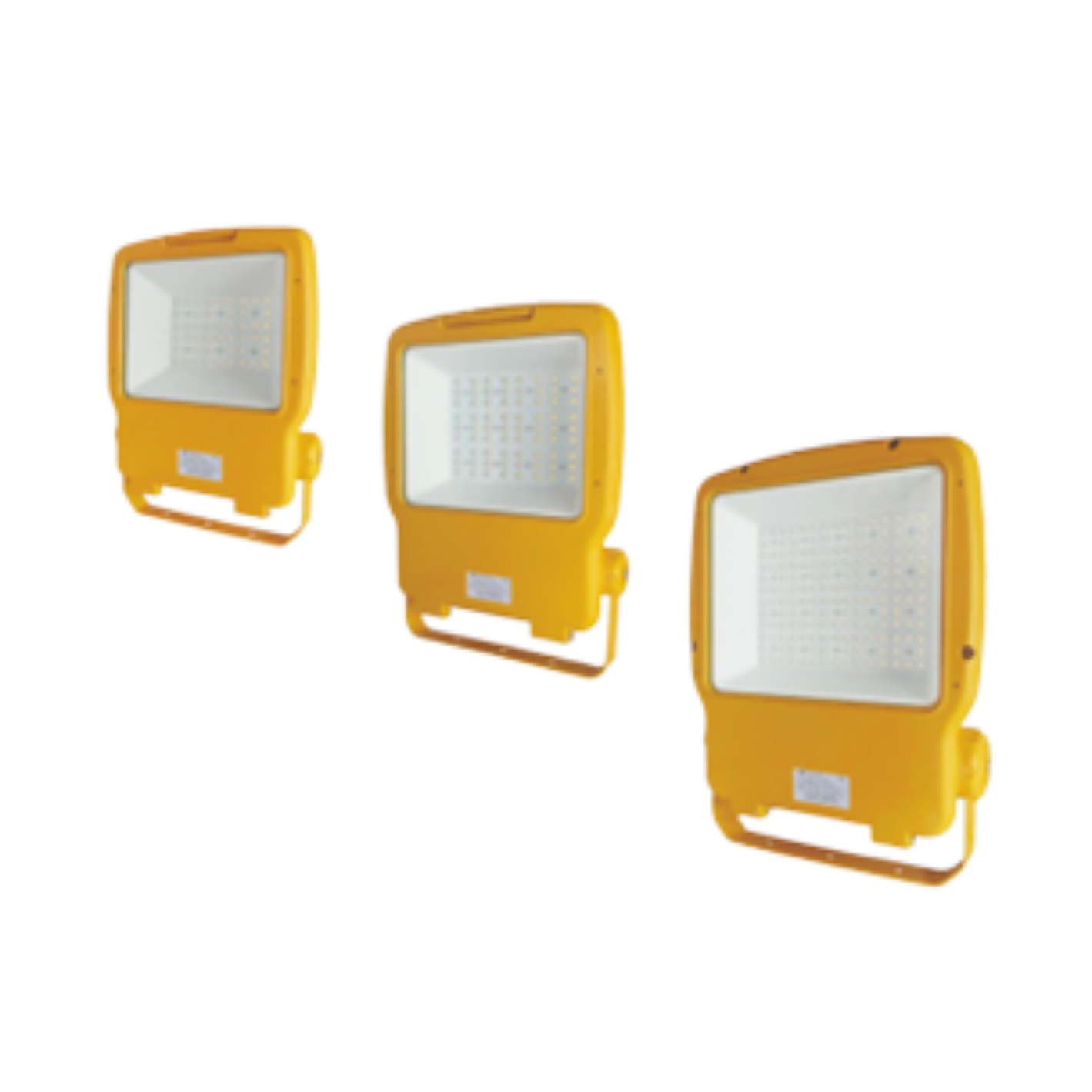

Explosion-proof LED Floodlights(Intelligent Type)
• Explosion protection to
– CENELEC
– IEC
– NEC
• Can be used in
– Zone 2
– Zone 21 and Zone 22
– Class I, Zone 2
– Class I, Division 2, Groups A, B, C, D
• International brand white light LED, reasonable arrangement of multi LED, high lighting efficiency and long service life
• Two types of light distribution: spotlight and floodlight, which can be selected on request
• Standard luminaires are equipped with 60° lens; 30° lens is optional, please specify when placing an order
• Low-maintenance costs due to long service life, which is up to 100,000 operating hours
• Luminaries feature adjustable brightness for efficient energy-saving lighting
• When used with an intelligent lighting system, they enable centralized intelligent management and control of lighting equipment
Global (IECEx)
Gas and dust
IECEx (applied for)
Ex ec mc IIC T□ Gc
Ex tb IIIC T□ Db
Europe (ATEX)
Gas and dust
ATEX (applied for)
II 3 G Ex ec mc IIC T□ Gc
II 2 D Ex tb IIIC T□ Db
IECEx; ATEX
EN 60079-0, EN 60079-7, EN 60079-18, EN 60079-31
IEC 60079-0, IEC 60079-7, IEC 60079-18, IEC 60079-31
Enclosure
Copper-free Aluminium Alloy, powder coated surface
Glass cover
Toughened glass, stands 4J impact
LED driver
Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95,
with function of distributed current, constant current, surge-proof and anti-electromagnetic interference,
and protection against overcurrent, open circuit, and short circuit
Stainless steel
Lamp specification
LED module
Lamp power (W)
Type I: 80W, 120W
Type II: 150W, 200W, 240W
Type III: 300W
≥80
5000K
Note: nature white is available in general. Warm white is optional, please specify when ordering.
110–277V AC 50/60Hz, 130–250V DC
415V AC 50/60Hz is optional (only for 200W, 300W)
IP66
-40°C~+58°C (+40°C)
3×1.5–4mm² (L+N+PE)
1×M20×1.5 cable gland (DQM-I Ex eb)
