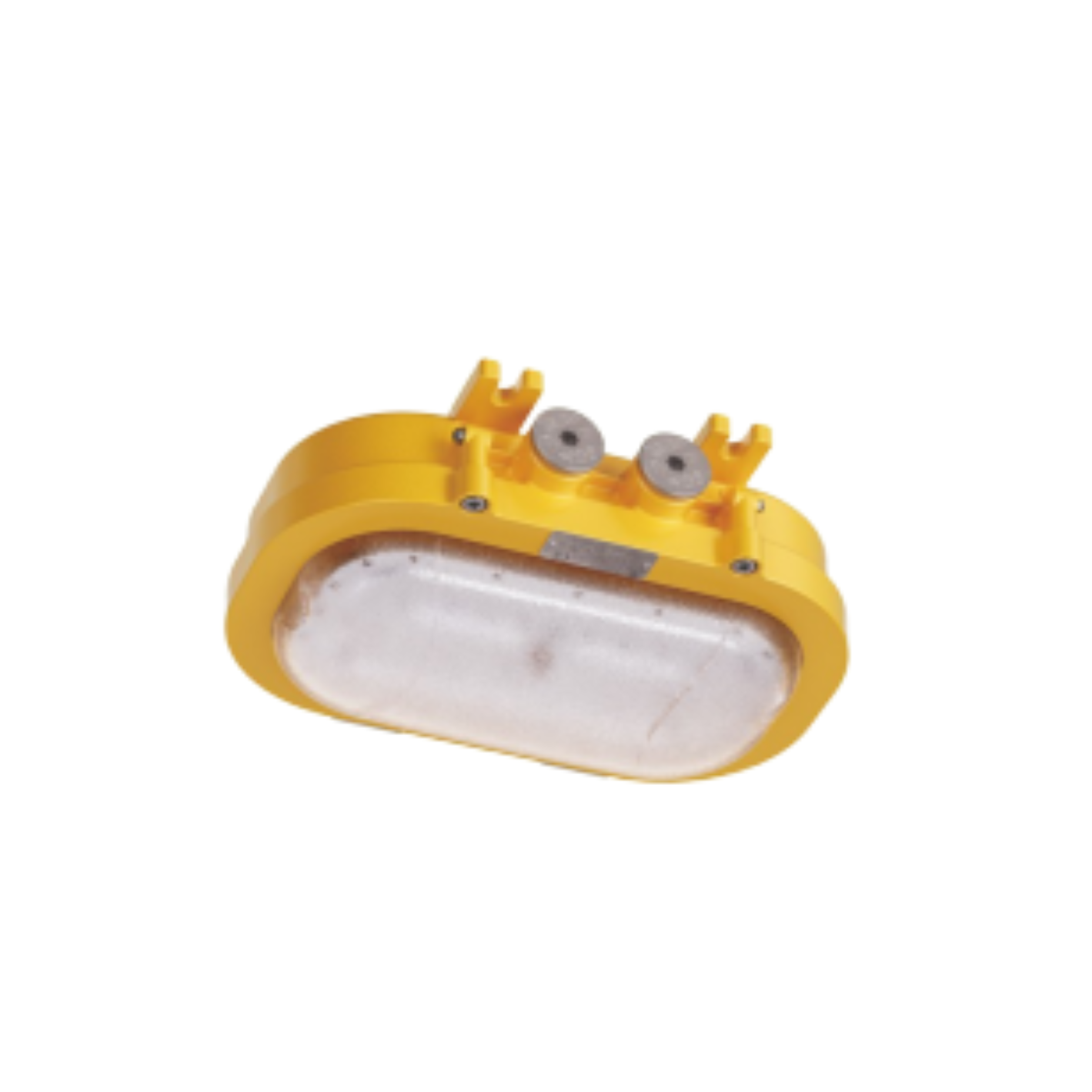

Explosion‑Proof LED Bulkhead Light
Explosion protection to
– CENELEC
– IEC
– NEC
Can be used in
Zone 1 and Zone 2
Zone 21 and Zone 22
Class I, Zone 1 and Zone 2
Class I, Division 2, Groups A, B, C, D
Applicable lamp and power (max.30W)
LED: 10W, 20W, 30W
International brand white light LED, reasonable arrangement
of multi LED, high lighting efficiency and long service life.
Low-maintenance due to long service life, which is up to 100,000
operating hours.
Global (IECEx)
IECEx (applied for)
Gas and dust
Ex db eb mb IIC T6 Gb
Ex tb IIIC T80°C Db
Europe (ATEX)
ATEX (applied for)
Gas and dust
II 2 G Ex db eb mb IIC T6 Gb
II 2 D Ex tb IIIC T80°C Db
IECEx; ATEX
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-18, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-18, IEC 60079-31
Enclosure
Copper-free Aluminium Alloy, powder coated surface.
Glass cover
Toughened glass, stands 4J impact
LED driver
Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95,
with function of distributed current, constant current, surge-proof and anti-electromagnetic
interference, and protection against overcurrent, open circuit, and short circuit.
Stainless steel
Lamp specification
LED module, Multiple LED
Lamp power (W)
10W, 20W, 30W
≥80
5700K
Note: nature white is available in general. Warm white is optional, please specify when ordering.
100–277V AC 50/60Hz, 24V DC, 36V DC
IP66
-40°C~+60°C
3×1.5–4mm² (L+N+PE)
2×M25×1.5 plugs
DQM-I (Ex eb) is recommended
