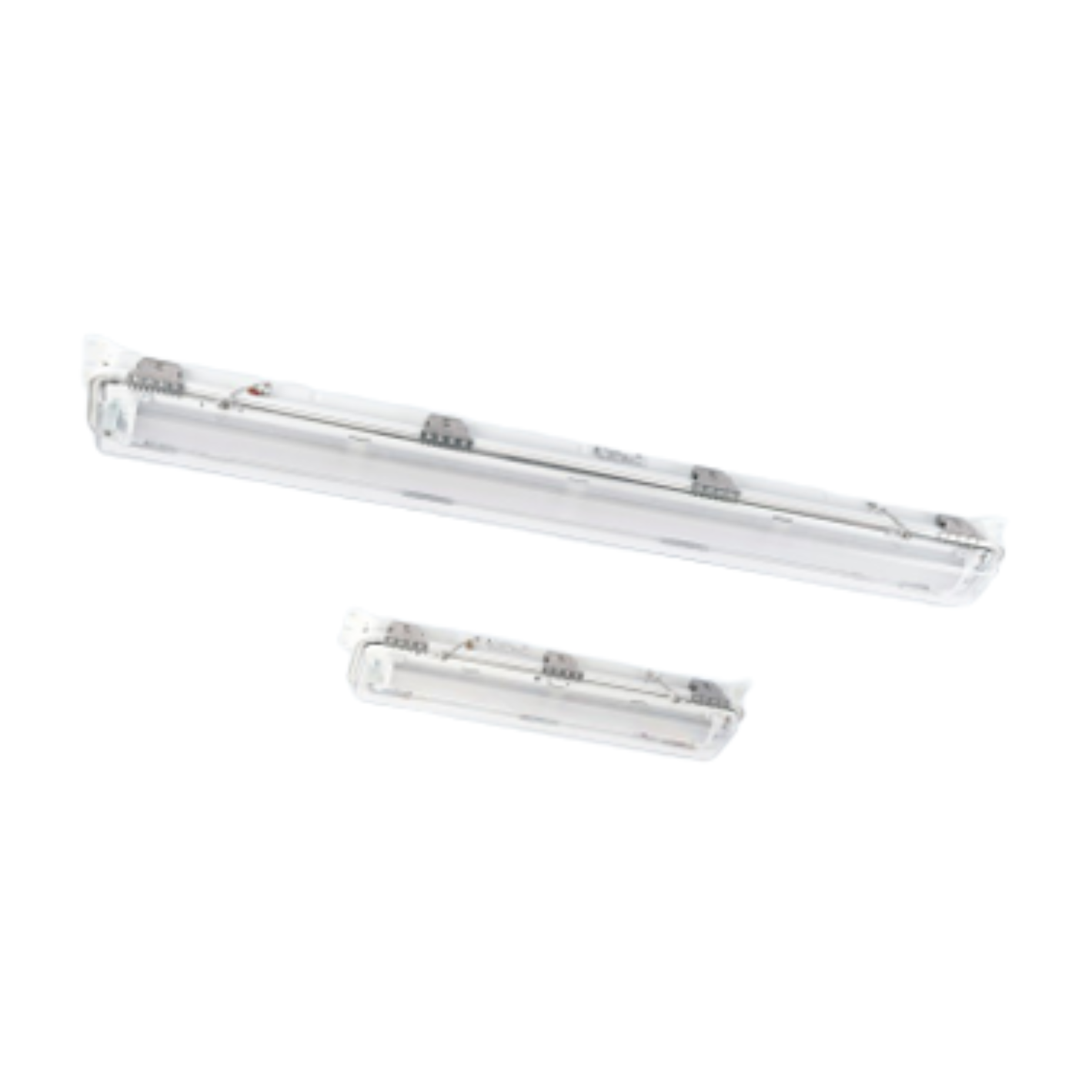

Explosion-proof Light Fittings for Fluorescent Lamp
• Explosion protection to
– CENELEC
– IEC
– NEC
• Can be used in
– Zone 1 and Zone 2
– Zone 21 and Zone 22
– Class I, Zone 1 and Zone 2
– Class I, Division 2, Groups A, B, C, D
• Two enclosure types: Type I and Type II
• Clear polycarbonate transparent cover, high light transmittance, resistance to high energy impact and thermal fusion.
• Enclosure is formed of stainless steel.
• Built-in electronic ballast, power factor ≥0.95
• LED driver, wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95
• Luminaries feature adjustable brightness for efficient energy-saving lighting.
• When used with an intelligent lighting system, they enable centralized intelligent management and control of lighting equipment.
Global (IECEx)
Gas and dust
IECEx (applied for)
Ex db eb mb IIC T6/T5/T4 Gb
Ex tb IIIC T80°C Db
Europe (ATEX)
Gas and dust
ATEX (applied for)
II 2 G Ex db eb mb IIC T6/T5/T4 Gb
II 2 D Ex tb IIIC T80°C Db
IECEx; ATEX
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-18, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-18, IEC 60079-31
Enclosure
Stainless steel
Diffuser
Polycarbonate, stands 4J impact
Ballast
Electronic ballast, power factor ≥0.95
LED driver
Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95
Stainless steel
Lamp specification
SMD LED (supplied with the light fittings)
Lamp power (W)
20W, 40W, 60W, 80W
Colour rendering index (Ra)
≥80
LED Colour temperature (CCT)
5000K
Note: nature white is available in general. Warm white or cool white is optional, please specify when ordering.
100–277V AC 50/60Hz
IP66/IP67
-40°C~+58°C (+40°C)
3×1.5–4mm² (L+N+PE)
4×Φ25.5; 4×M25×1.5 Plugs (Stainless steel)
Φ9–Φ16 (mm)
