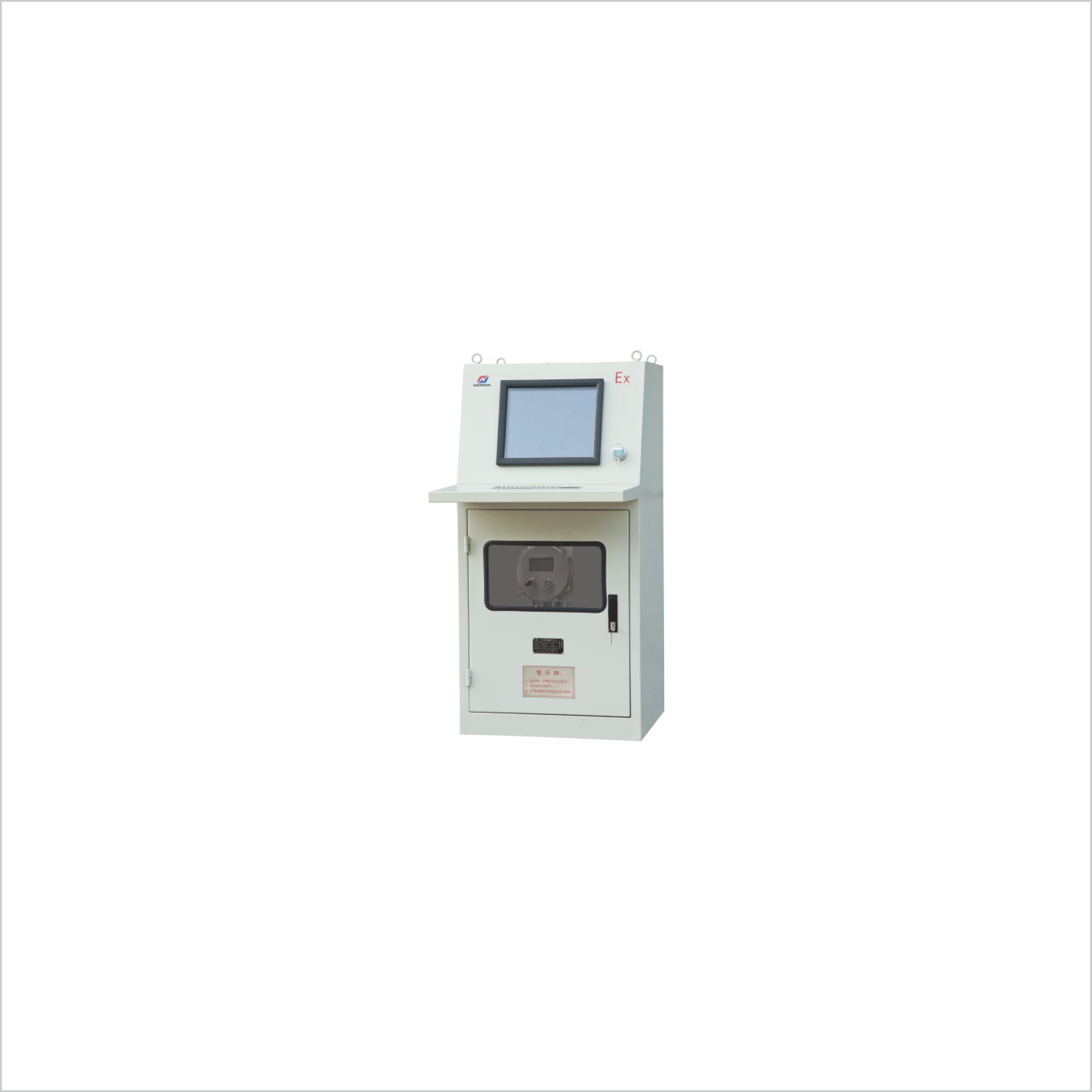

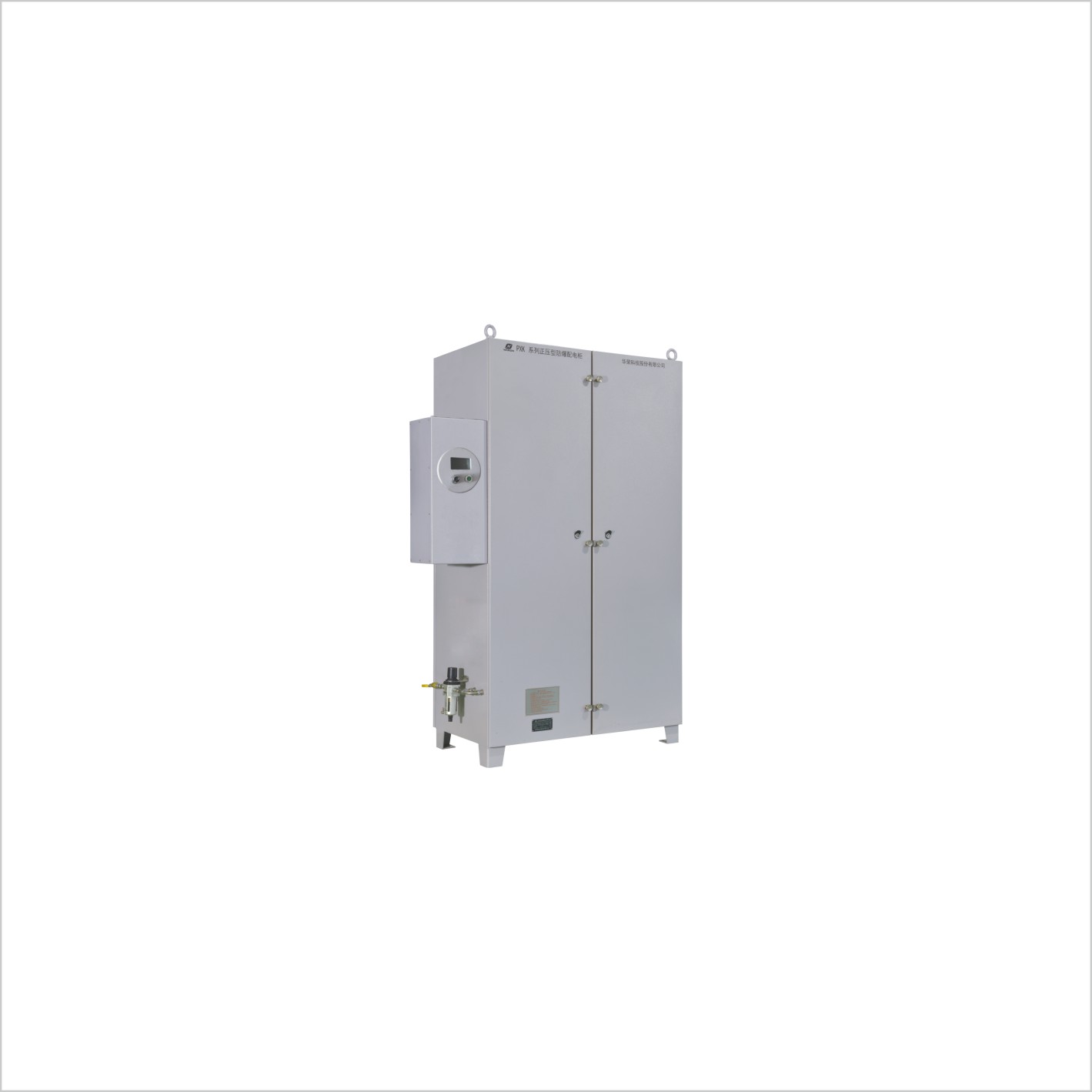

PXK Series

Explosion-proof Pressurized Distribution Cabinets

Overview

  • Explosion protection compliant with CENELEC and IEC standards
  • Suitable for hazardous areas:
    • Zone 1 and Zone 2
    • Zone 21 and Zone 22
  • Designed for IIC gas environments, suitable for high-risk hazardous applications
  • Available in multiple configurations:
    • Type Q
    • Type T
    • Type K
  • Cabinet consists of a main enclosure and auxiliary chamber:
    • Main enclosure houses electrical components and pressurization system
    • Auxiliary chamber integrates control systems and ventilation functions
  • Equipped with advanced systems, including:
    • Explosion-proof ventilation system
    • Automatic control system
    • Explosion-proof pressure display system
    • Audible and visual alarm system
    • Air inlet/outlet control system
  • Integrated air supply device ensures safe pressurization operation
  • Designed with robust steel plate construction, providing strength and durability
  • Flexible installation options:
    • Top or bottom air inlet
    • Front or rear operation and maintenance
  • Equipped with quick-opening rear doors or console-type structures for easy access and maintenance
  • Designed for reliable operation, safety, and ease of installation in hazardous environments

Specifications

Explosion Protection
  • IECEx (Global): IECEx EUT 17.002X
    • Ex pzc IIC T5 Gb
    • Ex pzc IIIC T95°C Dc
  • ATEX (Europe): EPT 15 ATEX 0187
    • II 3 G Ex pzc IIC T5 Gc
    • II 3 D Ex pzc IIIC T95°C Dc IP66
  • CU TR: RU C-CN.ME06.B.00413/19
    • Ex pzc IIC T6 Gc / Ex tb IIIC T80°C Db IP66
    • Ex pzc IIC T4 Gc / Ex tb IIIC T130°C Db IP66
Standards & Certifications
  • IECEx, ATEX, CU TR, INMETRO
  • EN 60079-0 / -2 / -31
  • IEC 60079-0 / -2
Pressurization System
  • Positive Pressure Value:
    • 200Pa–800Pa (0.002–0.008 bar)
    • 0.2MPa–0.8MPa (2–8 bar)
Electrical Data
  • Rated Voltage: Max. 690V AC, 50/60Hz; 500V DC
  • Rated Current: Max. 630A
Construction & Materials
  • Enclosure: Stainless steel or powder-coated carbon steel
Protection & Environment
  • Degree of Protection: IP66
  • Ambient Temperature:
    • IECEx / ATEX: -10°C to +55°C
    • CU TR: -20°C to +55°C (T6/T80°C), up to +75°C (T4/T130°C)
Area Classification
  • Suitable for:
    • Zones 1 & 2
    • Zones 21 & 22
