Explosion-proof High-Voltage Junction Boxes
● Explosion protection to
● Can be used in
Zone 1 and Zone 2
Zone 21 and Zone 22
Class I, Zone 1 and Zone 2
Class I, Division 2, Groups A, B, C, D
● Enclosure: stainless steel or carbon steel
● Special requirements on request
● Copper bars and high-voltage insulators

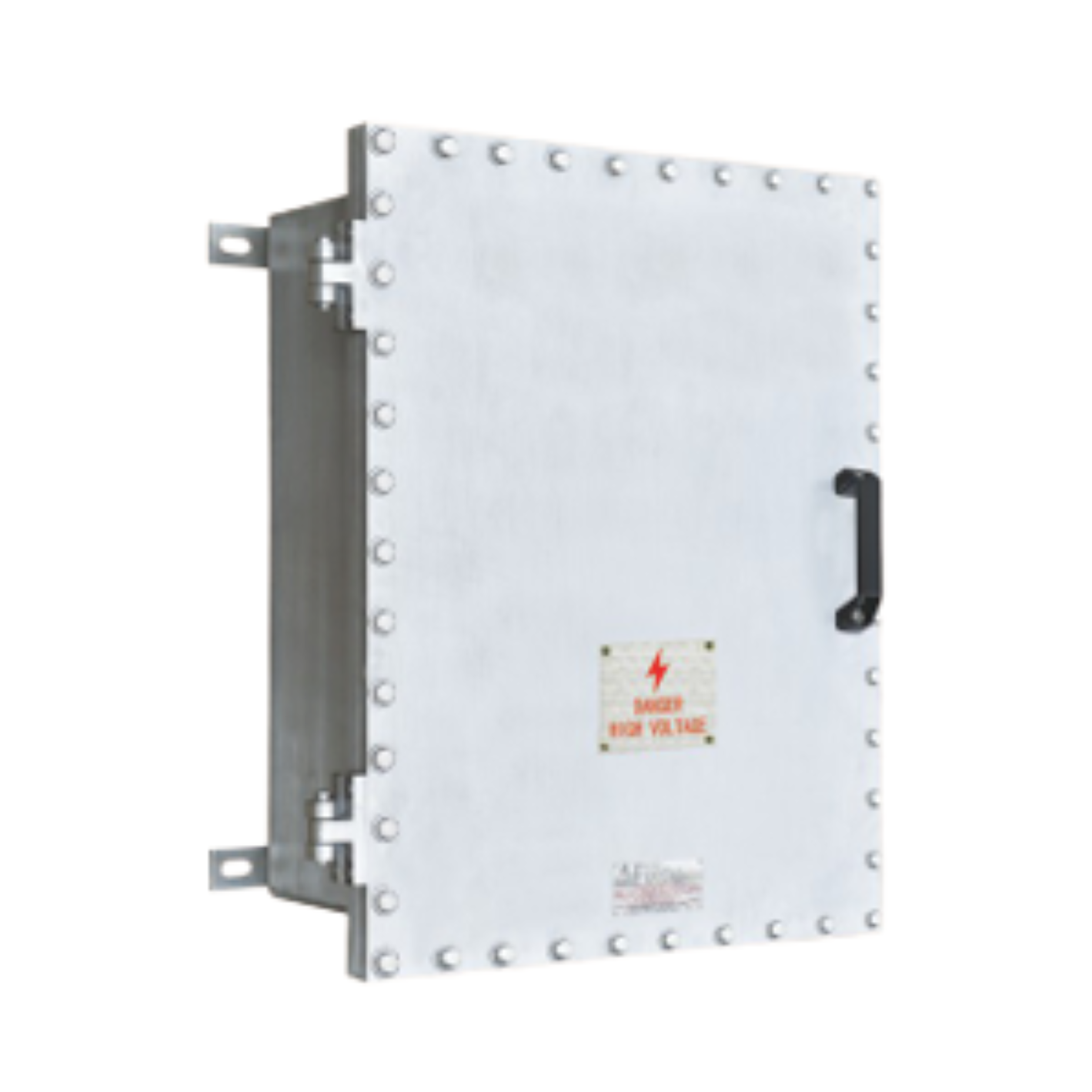

Explosion-proof high-voltage junction box BXJ92-□/□/□
IECEx PCET 24.0011X
Ex db IIB T6…T5 Gb
Ex tb IIIC T80°C…T95°C Db
ExVeritas 24 ATEX 1911X
II 2 G Ex db IIB T6…T5 Gb
II 2 D Ex tb IIIC T80°C…T95°C Db
IECEx; ATEX
EN 60079-0, EN 60079-1, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-31
Stainless steel or carbon steel
Stainless steel
3~15kV (standard), 24~35kV (optional)
Up to max. 800A
Form of maximum power dissipation and temperature rise
Ta = 60°C
Type
BXJ92-I
BXJ92-II
Power consumption (W) T5/T95°C
371
575
Power consumption (W) T6/T80°C
180
279
M8/M12
IP66
-60°C ≤ Ta ≤ +60°C
