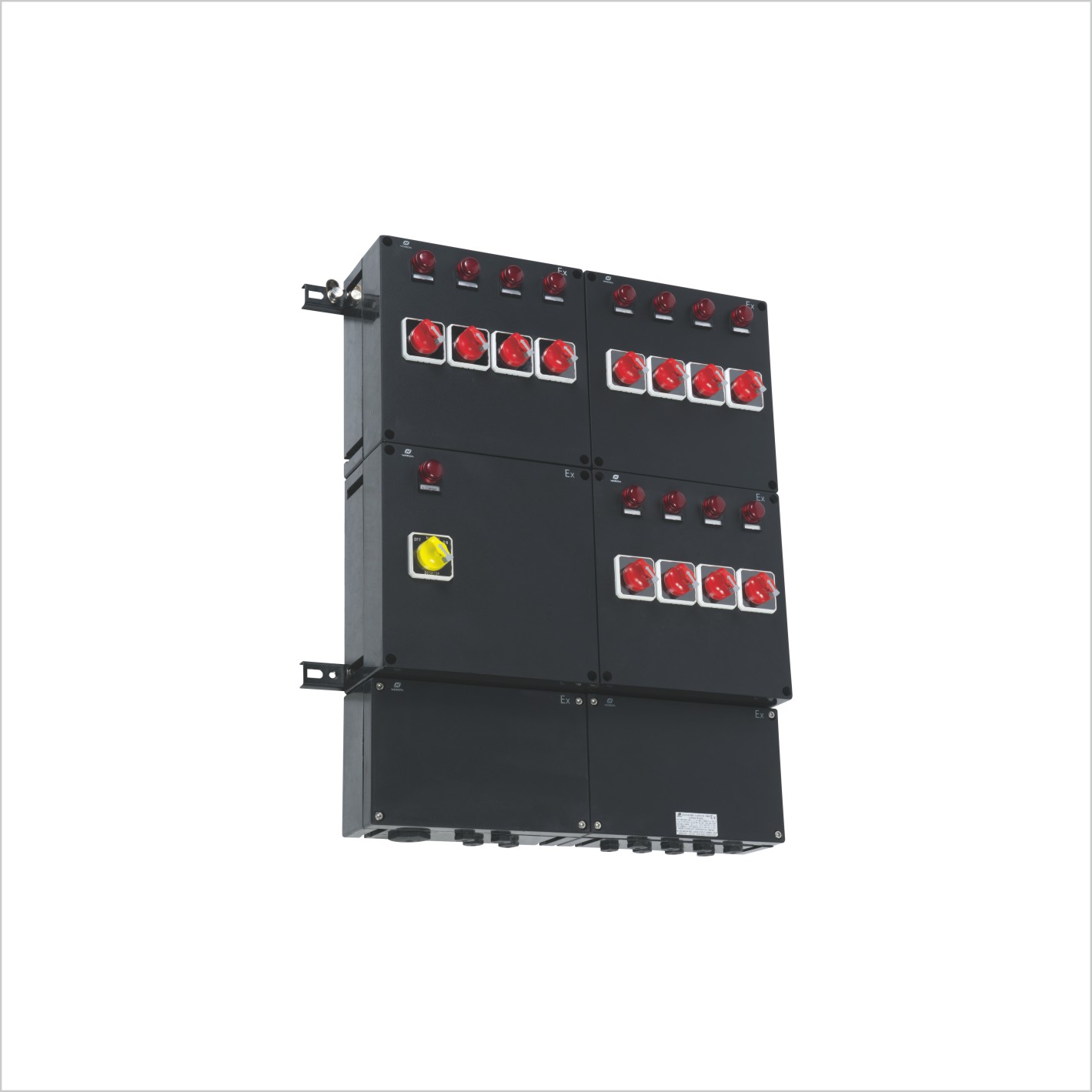

BXM(D)8050 Series

Explosion-proof Illumination (Power) Distribution Boxes (Ex d e IIC)

Overview

  • Explosion protection compliant with CENELEC, IEC, and NEC standards
  • Suitable for hazardous areas:
    • Zone 1 and Zone 2
    • Zone 21 and Zone 22
    • Class I, Zone 1 and Zone 2
    • Class I, Division 2, Groups A, B, C, D
  • Designed with modular enclosure structure (Ex d e) for flexible configuration
  • Main switch and branch switches are operated via external rotary actuators
  • Internal wiring is pre-terminated at terminals, ensuring convenient installation
  • Compatible with international brands of explosion-proof terminal blocks
  • Enclosure made of GRP (glass fibre-reinforced polyester resin) for high strength and corrosion resistance
  • Cable entries are pre-plugged, with cable glands available upon request
  • Suitable for illumination and power distribution applications in hazardous environments
  • Custom configurations available based on project requirements

Specifications

Explosion Protection

  • IECEx (Global): IECEx CQM 14.0033X
    • Ex db eb mb IIC T6 Gb
    • Ex tb IIIC T80°C Db IP66
    • Temperature class varies (T4–T6) depending on configuration and ambient conditions
  • ATEX (Europe): EPT 15 ATEX 2265
    • II 2 G Ex db eb mb IIC T6 Gb
    • II 2 D Ex tb IIIC T80°C Db IP66
    • Multiple configurations available based on application
  • Explosion protection type may vary depending on the use of certified Ex components and configuration
Standards & Certifications
  • IECEx, ATEX, CU-TR
  • EN 60079-0 / -1 / -7 / -18 / -31
  • IEC 60079-0 / -1 / -7 / -18 / -31
Construction & Materials
  • Enclosure Material: GRP (glass fibre-reinforced polyester resin)
  • Colour: Black
  • Enclosure Type: Ex e
  • Fasteners: Stainless steel

Electrical Data

  • Rated Voltage: Max. 690V AC, 50/60Hz; Max. 500V DC
  • Rated Current: Max. 250A

Built-in Components

  • Main Switch: BL8060 series (see P5/72–77)
  • Branch Switch: NL8060 series (see P5/72–77), with optional earth leakage protection
  • Terminal Blocks: International brand explosion-proof terminal blocks
  • Indicator: Available as required

Protection & Environment

  • Degree of Protection: IP66
  • Ambient Temperature: -40°C to +55°C (up to +60°C depending on configuration)

Installation

  • Cable Entries: Standard metric thread (M×1.5); refer selection table for sizing
  • Cable Gland (optional): DQM-II (Ex eb, plastic) recommended
  • Entry Direction: Bottom
  • Mounting: Surface type (standard)

Area Classification

  • Suitable for:
    • Zones 1 & 2
    • Zones 21 & 22
