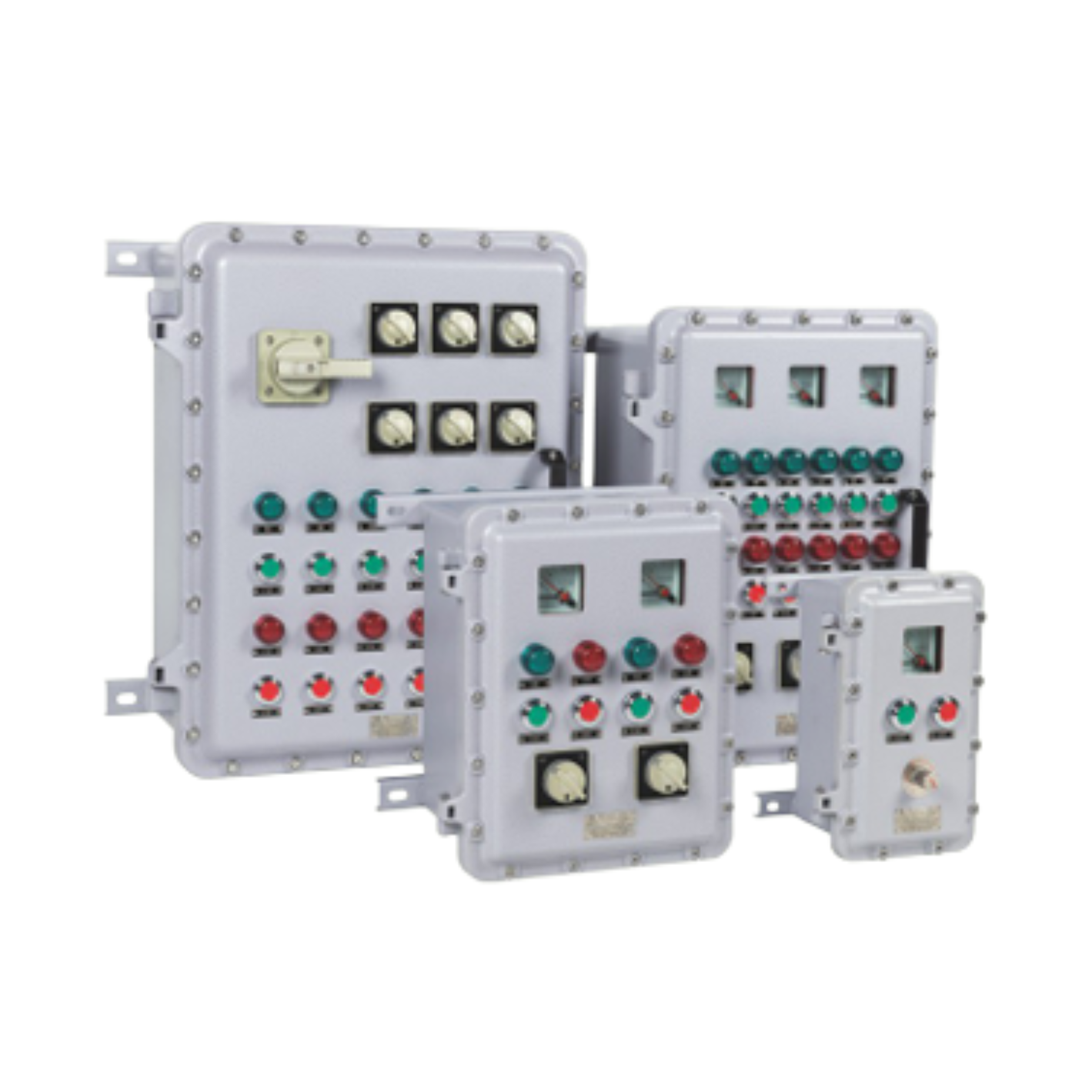

HRMD91 Series

Explosion-proof Distribution Equipment’s

Overview

  • Explosion protection compliant with CENELEC, IEC, and NEC standards
  • Suitable for hazardous areas:
    • Zone 1 and Zone 2
    • Zone 21 and Zone 22
    • Class I, Zone 1 and Zone 2
    • Class I, Division 1, Groups B, C, D
  • Designed with flameproof enclosure (Ex d IIB+H₂), suitable for use as feed distribution equipment in control and distribution systems
  • Applicable for distribution applications such as main circuit control, branch circuit control, terminal boxes, or motor starting boxes
  • Enclosure made of copper-free aluminium alloy with a durable powder-coated surface
  • Equipped with a specialized hinge structure, preventing damage to flameproof joints during opening and closing, and extending service life
  • Designed for flexible installation and easy integration, adaptable to various distribution system requirements
  • Custom configurations and specifications available upon request

Specifications

Explosion Protection
  • IECEx (Global): IECEx CML 18.0157X
    • Ex db IIB + H₂ T6 Gb
    • Ex tb IIIC T80°C Db IP66
  • ATEX (Europe): CML 18 ATEX 1338X
    • II 2 G Ex db IIB + H₂ T6 Gb
    • II 2 D Ex tb IIIC T80°C Db IP66
Standards & Certifications
  • IECEx, ATEX, CU-TR
  • EN 60079-0 / -1 / -11 / -31
  • IEC 60079-0 / -1 / -11 / -31
Construction & Materials
  • Enclosure: Copper-free aluminium alloy, powder-coated (RAL7040)
  • Fasteners: Stainless steel

Built-in Components

  • Measuring instruments: ammeters, voltmeters, power meters, tachometers, temperature controllers
  • Control devices: control switches, disconnecting switches
  • Protection devices: MCCBs, MCBs, AC contactors, thermal relays, intermediate relays, time relays
  • Control & monitoring: control transformers, DC power supplies, current transformers, surge protectors
  • Automation: PLCs, frequency converters, soft starters
  • Electrical accessories: terminals, busbars, resistors, fuses, switches
  • Lighting & auxiliary: lighting controllers, energy-saving controllers, temperature controllers
  • Safety & monitoring: safety barriers, motor protection switches, voltage/current monitors
  • Additional devices: UPS, industrial computers, timers, counters, solid state relays, diode modules

Electrical Data

  • Rated Voltage:
    • Max. 1000V AC, 50/60Hz
    • Max. 1500V DC
  • Rated Current: Max. 1200A

Protection & Environment

  • Degree of Protection: IP66
  • Ambient Temperature: -60°C to +60°C
Earthing
  • Internal & external earthing: M6/M8, M8/M8
Installation
  • Cable Entries: Standard metric thread (M×1.5); NPT plug available on request
  • Cable Gland (optional): DQM-II (Ex d) or DQM-III (Ex d) recommended
  • Entry Direction: Bottom
  • Mounting: Surface type (standard), pedestal type (optional)
Area Classification
  • Suitable for:
    • Zones 1 & 2
    • Zones 21 & 22
